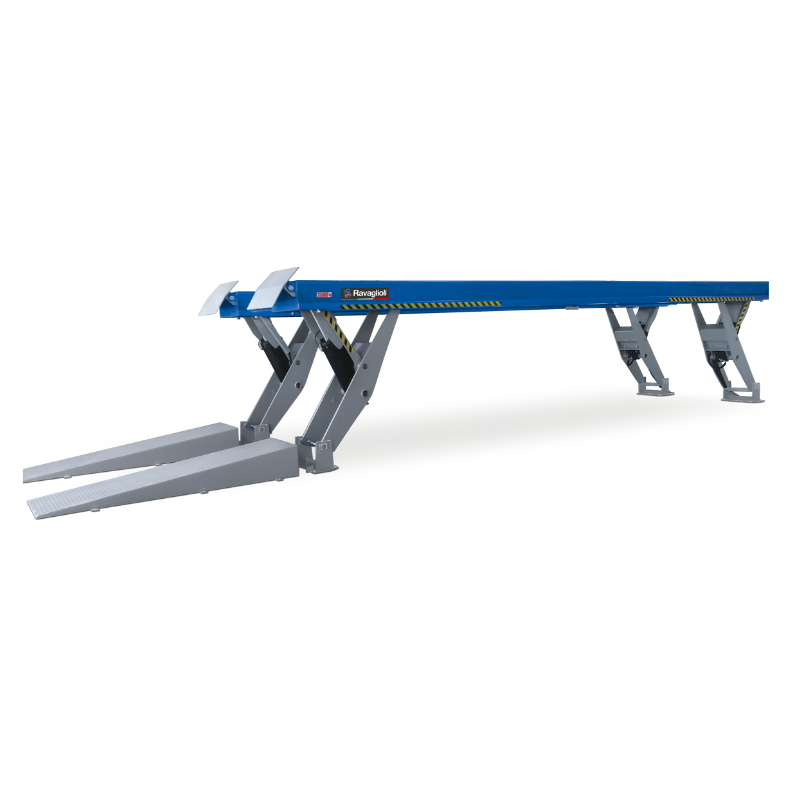

Electrohydraulic Commercial vehicle scissor lift 35 T, RAVAGLIOLI (RAV835.10I)

Robust Truck Scissor Lift with a Unique Design
The HEAVY-DUTY lift stands out with its minimal dimensions in the raised position.
The electronic synchronization of the two guide rails operates independently of load distribution.
Mechanical safety latches with a gear system ensure maximum vehicle safety.
A model adapted for wash bay conditions is available.
The control panel can be customized to local requirements.
No play detector, wheel alignment function, or wheel-free lift available.
Technical Specifications:
Installation type: inground
Lifting capacity: 35,000 kg
Motor power: 4 x 2.6 kW
Power supply: 400 V | 50 Hz
Lifting height: 1750 mm
Platform length: 9000 mm
Platform width: 750 mm
Total width: 2650 mm
