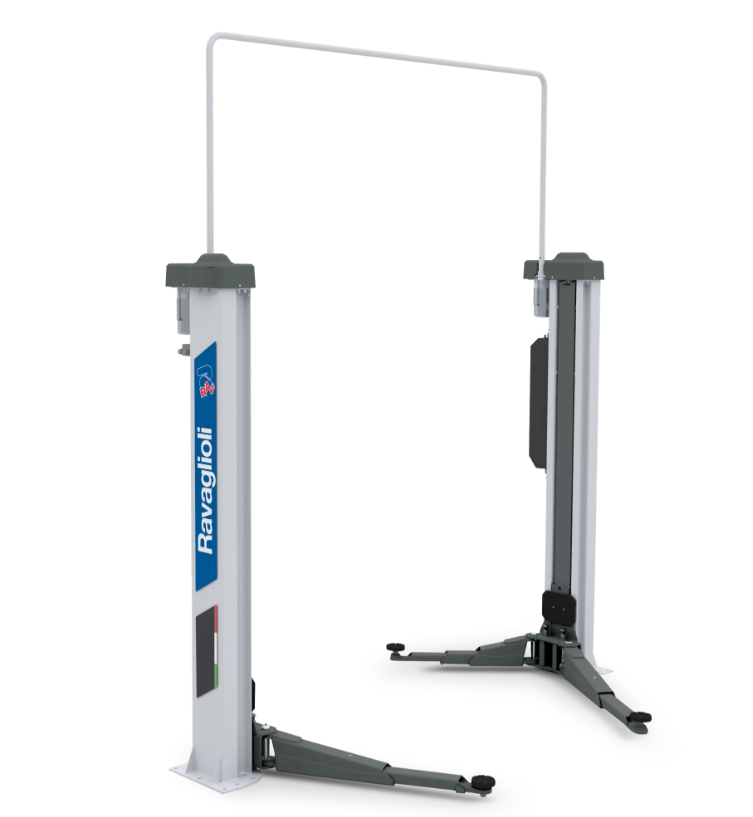

KPE32 Capacity 3200 kg symmetric columns, RAVAGLIOLI (RAV.KPE32.198662)

Electromechanical two-post symmetrical lift.
The lift’s communication system is mounted at the top, referred to as the "clear floor system."
This 3.2t capacity lift features asymmetrical lifting arms: short arms with 3 sections and long arms with 2 sections.
Technical Specifications:
Lifting capacity: 3200 kg
Maximum lifting height: 2000 mm
Lifting time: 42 s
Adjustable lifting pad height: 90 - 120 mm
Column height: 2756 mm
Drive-through width: 2468 mm
Minimum ceiling height required: 4050 mm
Lifting arm configuration: asymmetrical
Front lifting arm length: 511 - 914 mm
Rear lifting arm length: 805 - 1203 mm
Driving power: 2x2.6 kW
Lift width: 3318 mm
Lift height: 3918 mm
Power supply: 400V/50 Hz
