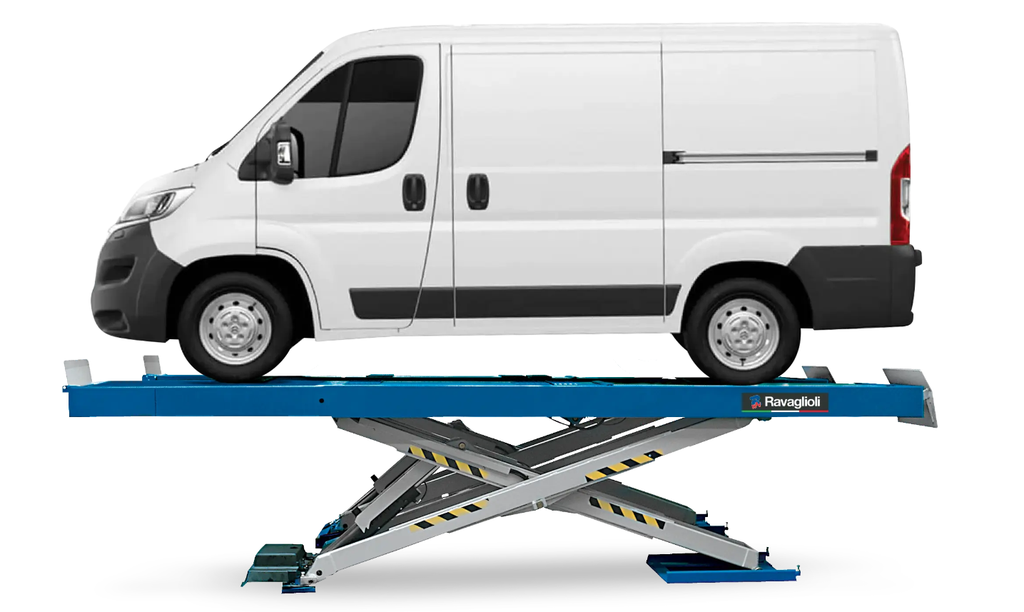

Electrohydraulic Scissor lift 5T, with play detector and wheel alignment RAV650N.5.55ISI, RAVAGLIOLI (RAV.650N5.193018)
Inground.
Wheel alignment: optional
Play detector: standard 8+4 movement play detector
Technical Specifications:
Maximum lifting height: 2070 mm
Lifting time: 47 s
Lowering time: 40 s
Maximum lift height from the floor: 1805 mm
Air pressure: 280 bar
Motor power: 2.6 kW
Platform width: 650 mm
Platform length: 5500 mm
Space between platforms: 900 mm
Power supply: 230 V | 50 Hz
Total length: 5500 mm
Total width: 2200 mm
Weight: 1850 kg
Installation depth: 295 mm
