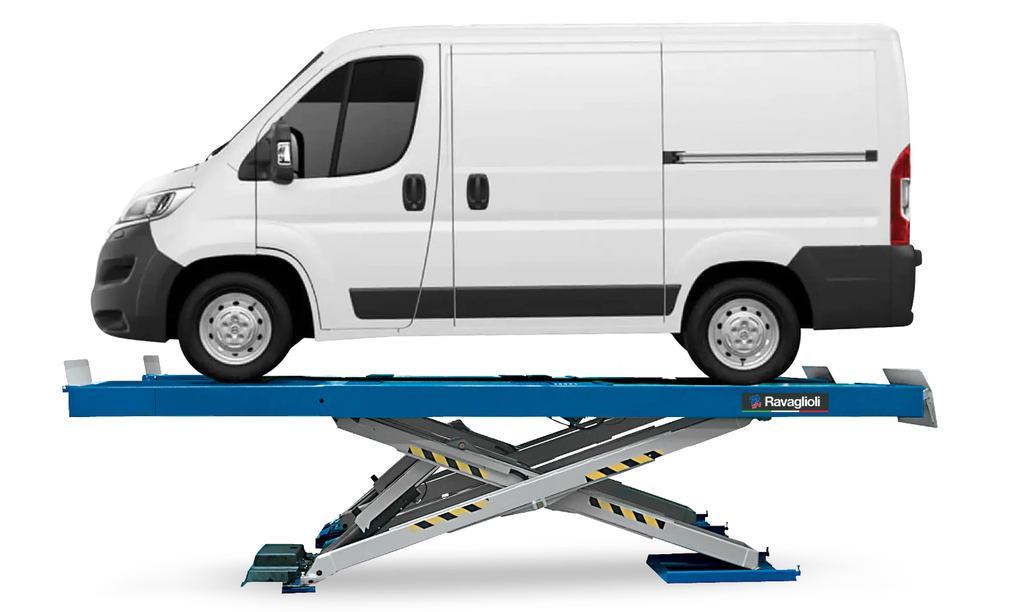

Electro-hydraulic scissor lift 5T with 5,5m platforms RAV650N.1.55I, RAVAGLIOLI (RAV.650N1.193728)

Lifts with big platforms, structured and designed for maximum stability also when loaded with large vehicles.
With level runways,inground.
Play detector, wheel alignment, wheel free lift- not possible.
Technical Specifications:
Maximum lifting height: 2075 mm
Lifting time: 47 s
Lowering time: 40 s
Maximum lift height from the floor: 1805 mm
Air pressure: 280 bar
Motor power: 2.6 kW
Platform width: 650 mm
Platform length: 5500 mm
Space between platforms: 900 mm
Power supply: 230 V | 50 Hz
Total length: 5500 mm
Total width: 2200 mm
Weight: 1413 kg
Installation depth: 270 mm
