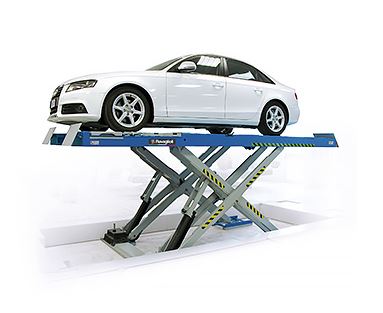

Electro-hydraulic scissor lift with chassis inspection 4.2T, RAV640N.4.46I RAVAGLIOLI (RAV.640N4.193063, RAV)

Recessed into the floor, with chassis inspection stand!

LIFTING CAPACITY, T 4.2
TOTAL LIFT WIDTH, MM 2100
LENGTH OF LIFTING PLATFORMS, MM 4600
LIFTING PLATFORM WIDTH, MM 615
LIFT HEIGHT, MM 1805
HEIGHT, MM 270
ENGINE POWER, KW 2.6
WARRANTY, MONTHS 12
MANUFACTURER Italy

- Mounted chassis inspection stand, 4-way inspection
- Conforms to 2014/45EU
- Remote control with spotlight

Long platforms are suitable for both passenger cars
Platforms with adjustment system for easy installation
There are no mechanical connections between the platforms
Acoustic alarm at the lowest part of the lowering movement
Hydraulic dual-rail synchronization control, independent of load distribution, with patented self-balancing equipment
Mechanical support device with automatic closing and pneumatic shut-off for maximum safety in raised position
Guiding plates at the front and integrated sliding plates at the rear
Optionally available: Lifter lighting, inserts for alignment plates, control panel cover, axle lifter, alignment plates, hand control
