3D riteņu regulēšanas stends RAV3D2.0WALL.3L (RAV.3DWAL.701039, RAVAGLIOLI)

3D wheel alignment stand with a tablet with a 10-inch screen, with wireless Bluetooth connection, can be attached to the wall.
Suitable when there is not enough space in front of the lift or pit. The batteries of the measuring chambers of the alignment bench with a quick disconnect system. The charging station has magnets, so the batteries can be easily removed and placed in place for charging. An LED indicator shows whether the batteries are charging properly. There is a special place to put the tablet.

Separate front/rear axle: +/- 20°;
Full deflection: +/- 20°;
Bending in turns: +/- 20°;
Front/rear axle angle: +/- 10°;
Wheel: +/- 18°;
SAI: +/- 18°;
Back drop: +/- 5°;
Lowered front axle: +/- 5°;
Geometric centerline: +/- 5°;
Push angle: +/- 5°;
Max. steering angle: +/- 50°;
Min. tire size: 8";
Max. tire size: 24";
Max. wheel diameter: 910 mm;
Max. wheel base: 4500 mm;
Weight: less than 14 kg;

KIT:

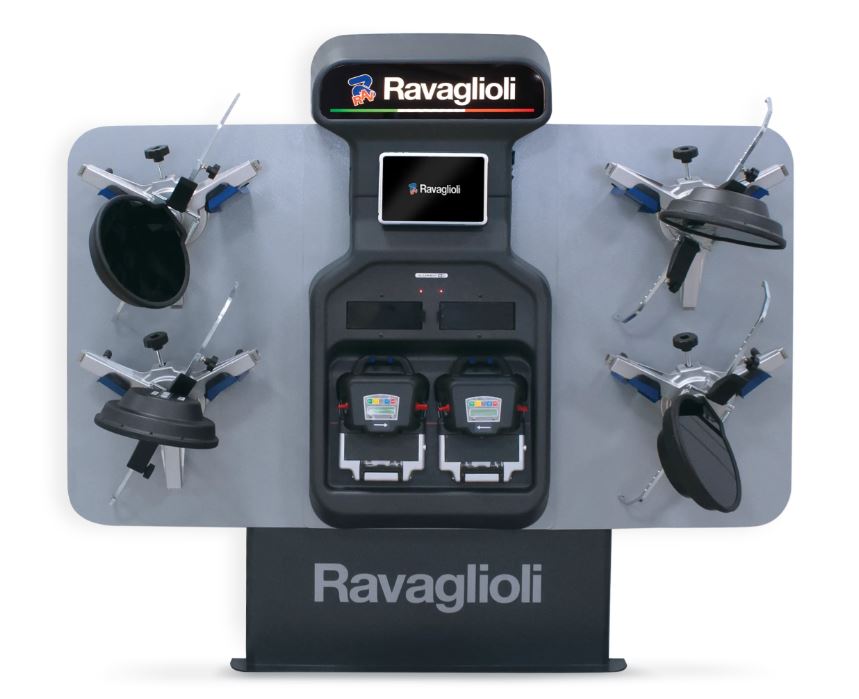

A wall-mounted frame on which you can neatly place the tablet and measuring heads, as well as the battery of the measuring heads. The batteries of the measuring heads are charging at this time.
10-inch tablet with a touch screen, a magnet on the back, and a charger;
Alignment stand targets 4 units;
2 pcs. (with batteries)
Four-point gripper holders 4 pcs.;
STDA35E/3D - with 3-point grippers;
STDA161 - steering lock;
10479 - brake pedal depressor;
STDA162 - mounting supports for 3D measurements;
STDA165 - auxiliary magnets for grippers;
STDA124 - auxiliary plates;
Database with EUROPEAN and AMERICAN cars
