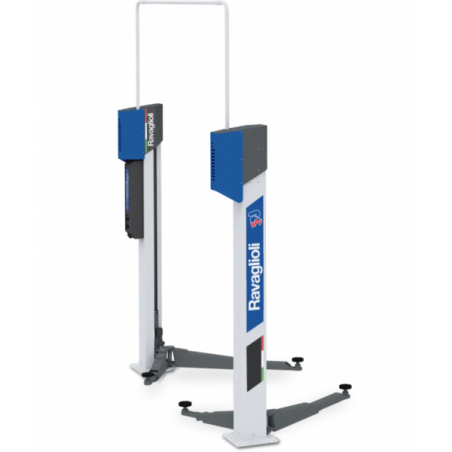

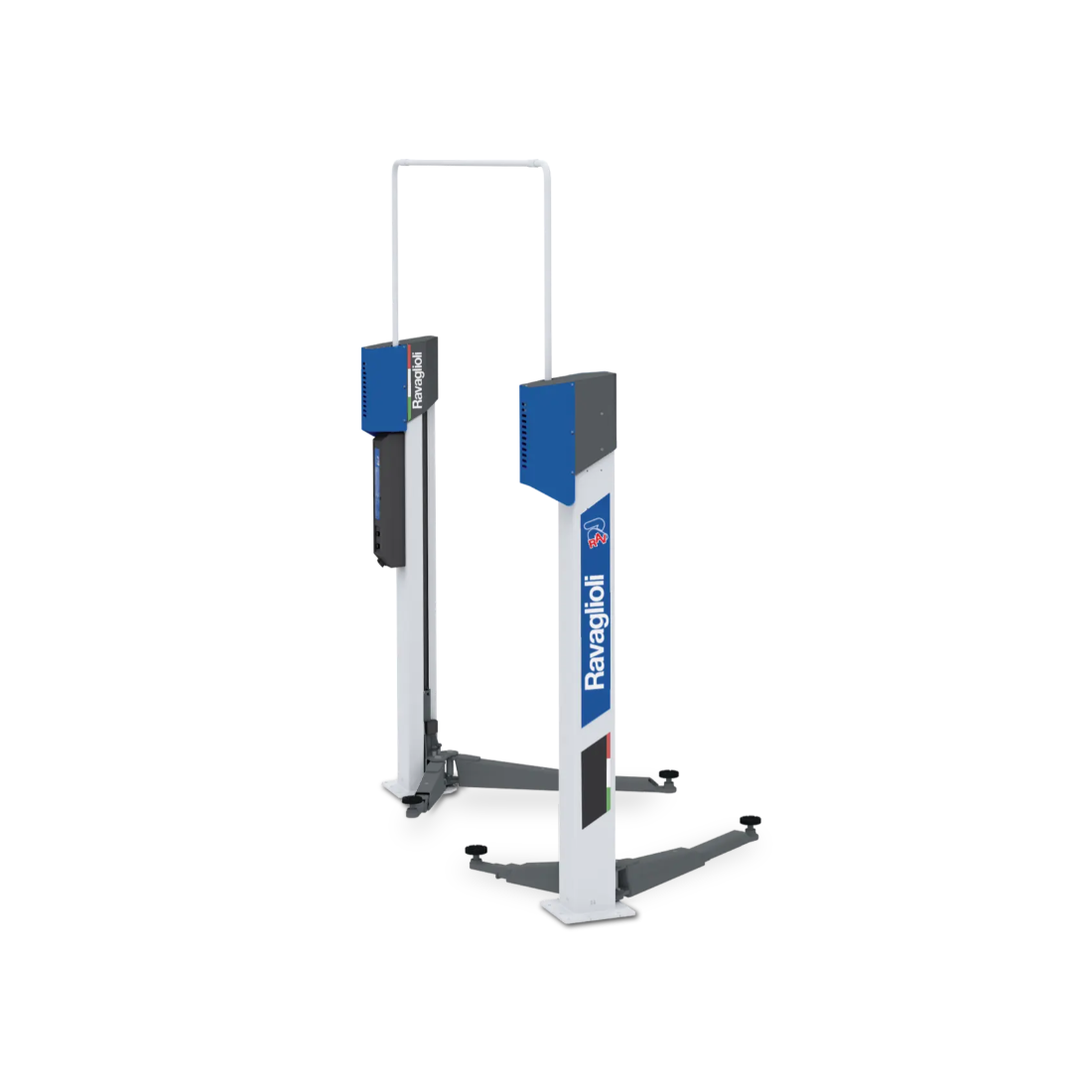

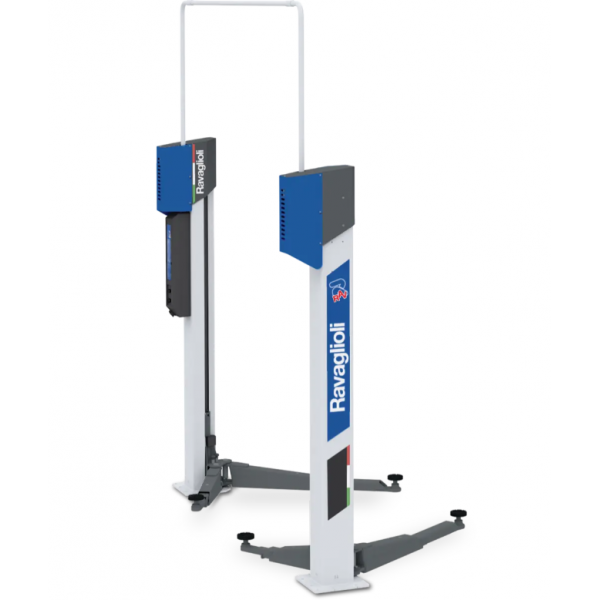

2-post electromechanical asymmetrical lift 3.2T KPX32P, RAV.KPX32.198624, RAVAGLIOLI

Advantages: Control: push buttons, Energy kit, Teq-Link.
Electromechanical two-column lift with asymmetric columns angled at 45°.
Features an overhead communication system, known as a clean floor system.
This 3.2-ton lifting capacity lift has asymmetric lifting arms: short arms with 3 segments, long arms with 2 segments.
Technical specifications:
Lifting capacity: 3200 kg
Maximum lifting height: 2000 mm
Lifting time: 42 s
Adjustable lifting pad height: 96 - 130 mm
Column height: 2920 mm
Drive-through width: 2372 - 2472 mm
Required minimum ceiling height: 4150 mm
Arm configuration: asymmetric
Front lifting arm length: 555 - 1100 mm
Rear lifting arm length: 805 - 1200 mm
Motor power: 2x2.6 kW
Lift width: 3250 - 3350 mm
Lift height: 4052 mm
Power supply: 400V/50 Hz
