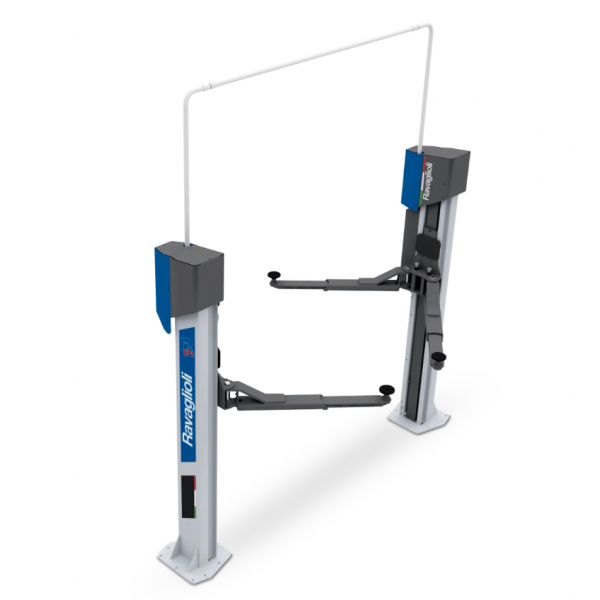

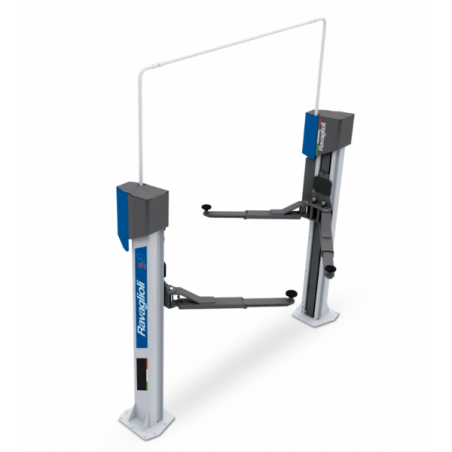

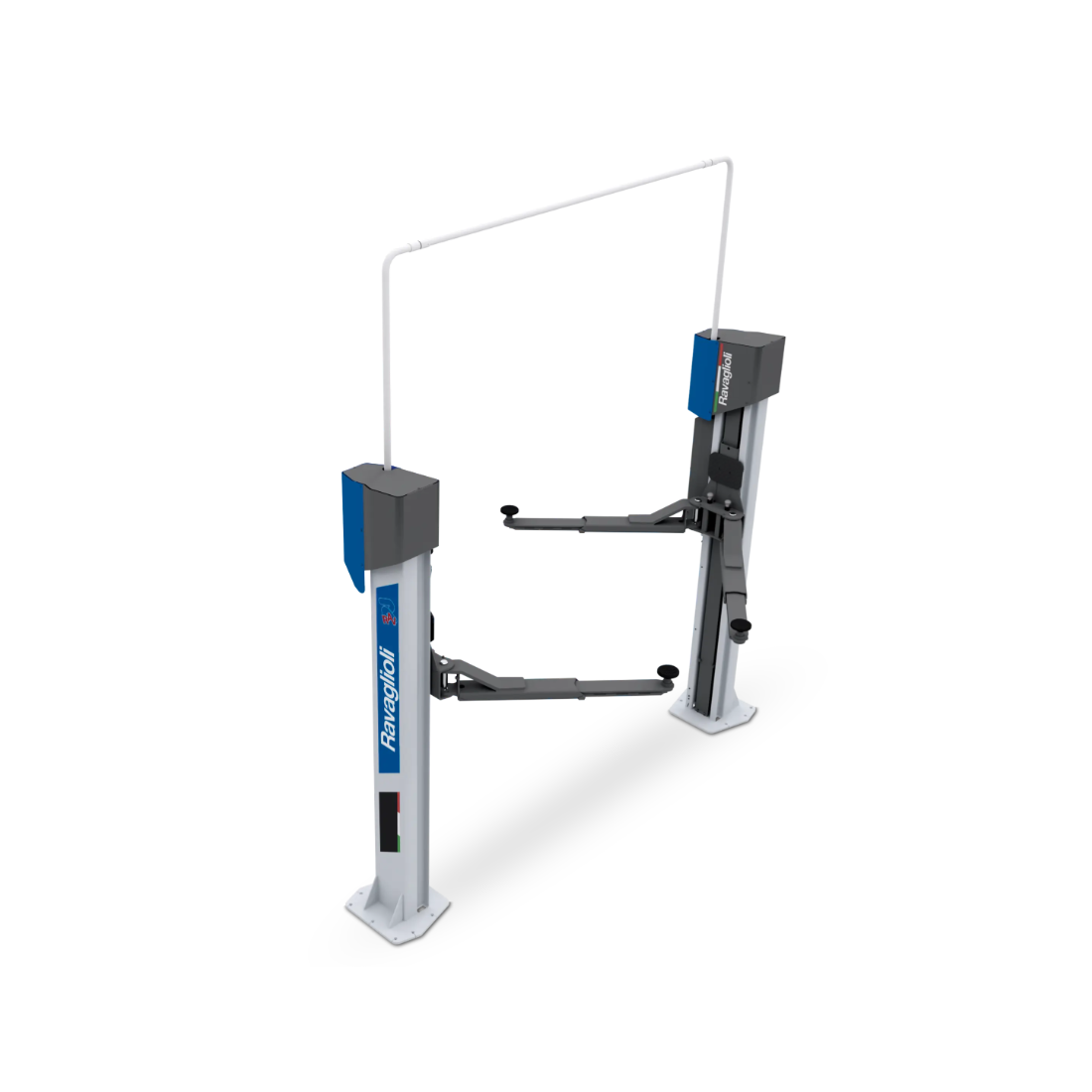

2-post electromechanical lift for extra-low vehicles 3,5T KPX35LLE, RAV.KPX35.199294, RAVAGLIOLI

Advantages: Control: push buttons, Teq-Link, Energy kit.
Electromechanical two-column lift with symmetric columns.
Features an overhead communication system, known as a clean floor system.
This 3.5-ton lifting capacity lift has symmetric lifting arms: short arms with 2 segments, long arms with 2 segments. Extra-low-profile arms; first stage: 65mm; second stage: 50mm;
Technical specifications:
Maximum lifting height: 1973 mm
Lifting time: 42 s
Adjustable lifting pad height: 83 - 148 mm
Drive-through width: 2604 - 2704 mm
Required minimum ceiling height: 4100 mm
Arm configuration: symmetrical
Front lifting arm length: 810 - 1250 mm
Rear lifting arm length: 810- 1250 mm
Motor power: 2x2.6 kW
Lift width: 3628 - 3728 mm
Lift height: 4000 mm
Power supply: 400/3/50Hz
