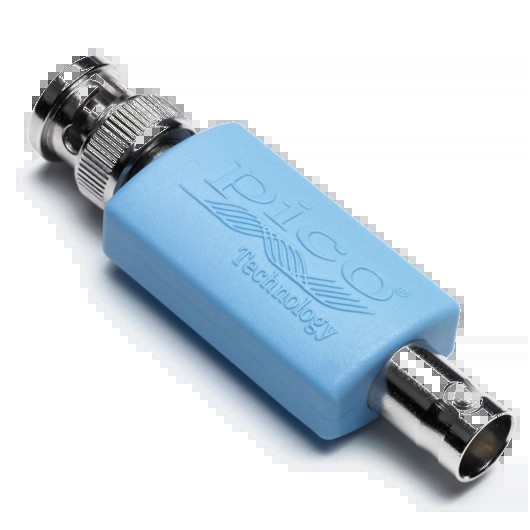

10:1 attenuator with BNC connectors, up to 400 V (TA197, PICO)
A passive 10:1 attenuator with high bandwidth and fault protection that lets you measure fuel injector and primary ignition waveforms with a PicoScope oscilloscope. It also raises the oscilloscope input impedance from 1 MΩ to 8 MΩ, so it suits signals from high-impedance sensors such as piezo knock sensors.
- 10:1 attenuation (10 V in = 1 V out)
- Maximum input voltage: 400 V
- Raises oscilloscope input impedance from 1 MΩ to 8 MΩ
- For ground-referenced signals only
- Weight: 0.03 kg
- Package dimensions: 10 × 8 × 2 cm
- Country of origin: United Kingdom
- EAN: 5055859701290
