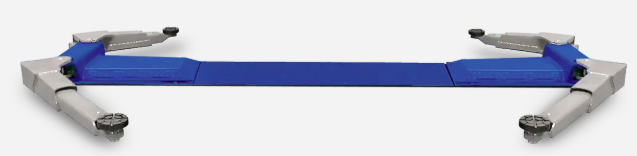

2-cylinder underfloor lift 3.5 t (RAV1110NK, RAVAGLIOLI)

Perfect synchronization between cylinders, regardless of load distribution.
Equipped with a safety valve to prevent overloading and in case of hydraulic pipe failure.
Self-controlled lowering speed. Extra-low profile arms, parallel to the floor.
2-Post In-Ground Lift
Rated lifting capacity: 3500 kg
Maximum lifting height: 2063 mm
Piston diameter: 120 mm
Distance between posts: 1340 mm
Lifting arms: Asymmetric
Telescopic front lifting arms: 3-stage
Telescopic rear lifting arms: 3-stage
Minimum lifting arm length: 500 mm
Maximum lifting arm length: 1070 mm
Minimum lifting height: 95 mm
Width: 3066 mm
