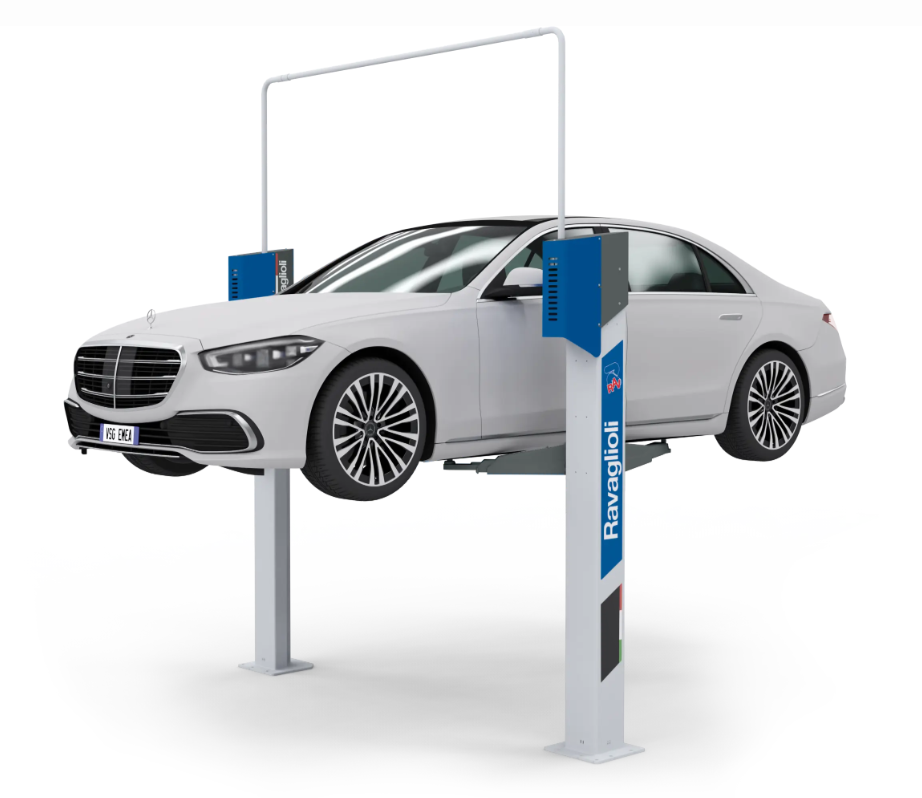

Electromechanical 2-post lift 3.5 t, KPX35E (RAV.KPX35.199157, RAVAGLIOLI)

Advantages: Control: push buttons, Energy kit, Teq-Link.
Electromechanical two-column lift with asymmetric columns angled at 45°.
Features an overhead communication system, known as a clean floor system.
This 3.5-ton lifting capacity lift has symmetric lifting arms: short arms with 3 segments, long arms with 2 segments.
Technical specifications:
Maximum lifting height: 2020 mm
Lifting time: 42 s
Adjustable lifting pad height: 100 - 150 mm
Drive-through width: 2372 - 2472 mm
Required minimum ceiling height: 4150 mm
Arm configuration: asymmetrical
Front lifting arm length: 564 - 1160 mm
Rear lifting arm length: 922 - 1460 mm
Motor power: 2x2.6 kW
Lift width: 3250 - 3350 mm
Lift height: 4052 mm
Power supply: 400/3/50Hz
Weight: 625kg.
