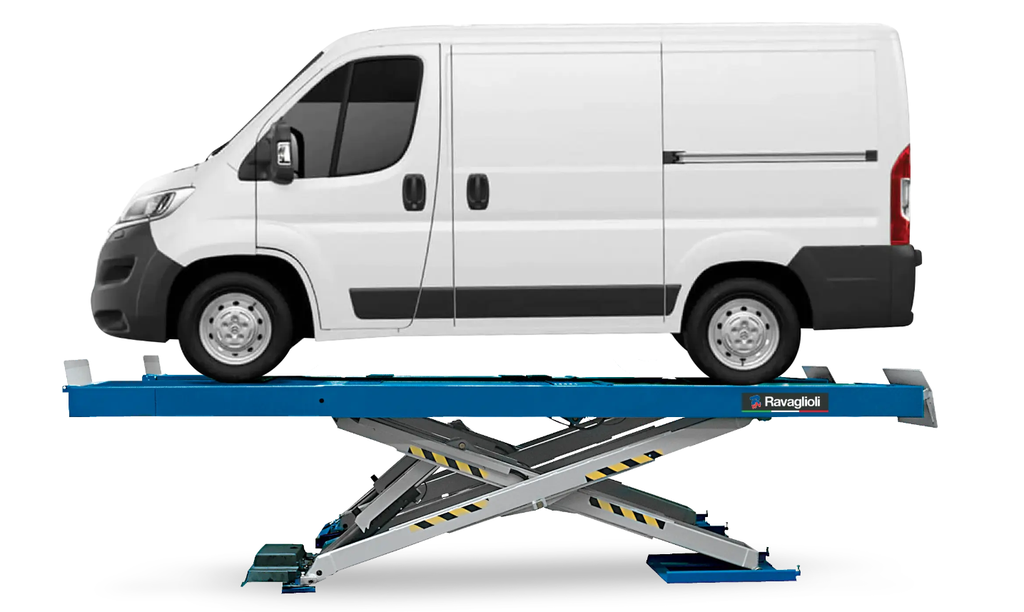

Electrohydraulic scissor lift 6T RAV650N.2.55I, RAVAGLIOLI (RAV.660N2.193322)
Inground.
Wheel alignment:optional
Wheel free lift and
Play detector- not possible.
Technical Specifications:
Maximum lifting height: 2075 mm
Lifting time: 47 s
Lowering time: 40 s
Maximum lift height from the floor: 1805 mm
Air pressure: 280 bar
Motor power: 2,6 kW
Platform width: 650 mm
Platform length: 5500 mm
Space between platforms: 900 mm
Power supply: 230 V | 50 Hz
Total length: 5500 mm
Total width: 2200 mm
Weight: 1880 kg
Installation depth: 270 mm
