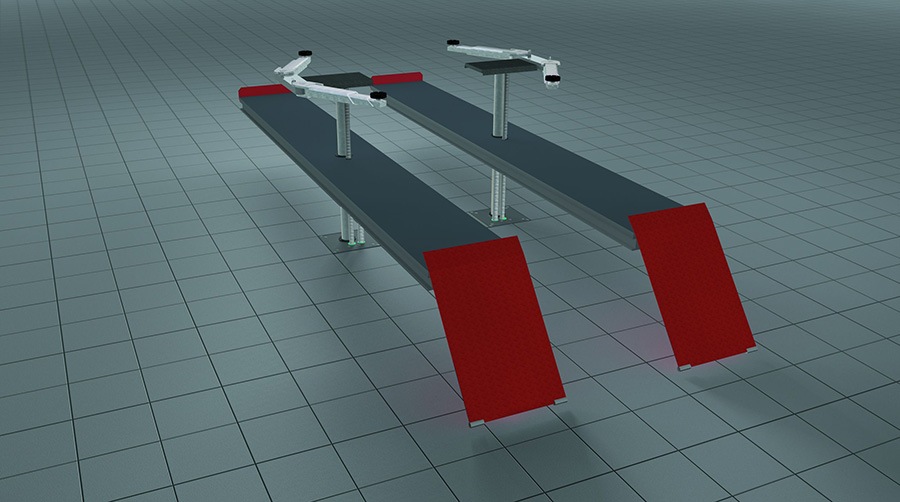

Floor-level 2-ram lift with wheel-free unit 5.0 t, 5,000 mm runways, KK 35 swing-arm support (P2-R2-B-50AR50-KK35, PITLIFT)
P2-R2 series 2-ram lift with integrated wheel-free unit, complete package with CE-Stop: floor-level (recessed) drive-on runways 5,000 x 600 mm (hot-dip galvanized), 4x short 200 mm drive-on flaps (RAL3020 red), adapter swing-arm support (RAL7016), galvanized lifting arms and standard support plates (75), hydraulic power unit, control box and covers; supplied without hydraulic oil.
- Drive-on runways: 5,000 x 600 mm, hot-dip galvanized
- Drive-on flaps: 4x 200 mm (short)
- Runway capacity: 5.0 t
- Runway stroke: 1,800 mm
- Wheel-free lift capacity: 3.5 t
- Wheel-free lift stroke: 1,900 mm
- Arm extension length: 560–1,140 mm
- Ram diameter: 2x125 / 2x90 mm
- Ram spacing: 1,350 mm
- Hydraulic oil volume: 100 l (oil not supplied)
