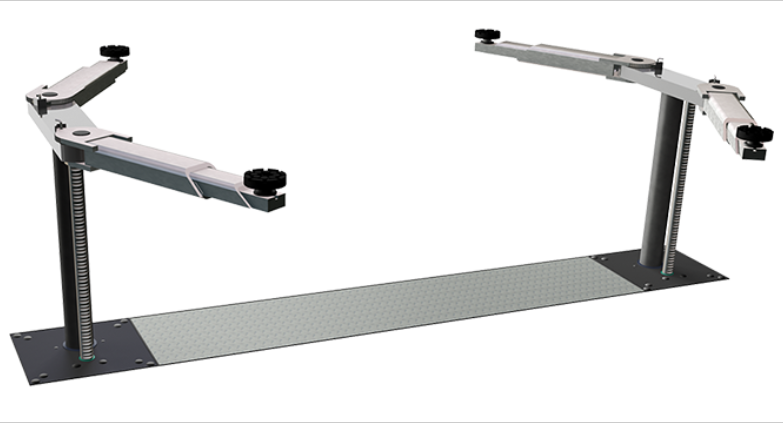

Electrohydraulic cylinder lift Pitlift (P2-50.19-K50)
double telescopic swing arms (3-parts)
with arm extensions
lift pads adjustable in height (standard 50 mm)
medium pressure power pack
cylinders beside the vehicle
synchronisation via tooth-rack out of stainless steel
no opening of the cassette for emergency lowering procedure
ant twist device by inside RHS (rectangular hollow section)
with audible alarm (CE-stop)
Specifications
Power supply	400 V (AC)
Lifting time	ca. 35 s
Lowering time	ca. 35 s
Fuse protection	16 A
Cylinder diameter	125 mm
Rated load capacity	3500 kg
Ram distance	2300 mm
Lifting height	1900 mm
Bottom clearance	110 mm
Surface	verzinkt
Arm extension range	560 - 1140 mm
