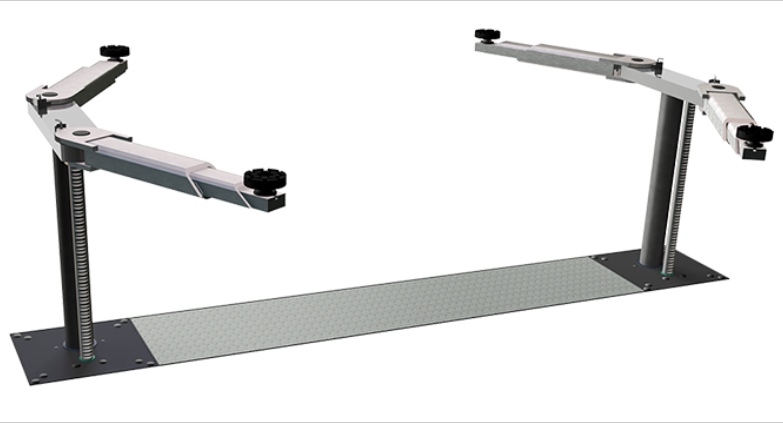

Electro-hydraulic cylinder (pit) lift 3.5 T, Pitlift (P2-50.19-K50, PITLIFT)
Pitlift electro-hydraulic cylinder (pit) lift – lifting cylinders outside the vehicle.
- Rated capacity: 3500 kg; lifting height: 1900 mm; lifting/lowering time: approx. 35 s; ground clearance: 110 mm
- Cylinder diameter: 125 mm; ramp distance: 2300 mm; power supply: 400 V (AC); fuse: 16 A
- Double telescopic swivel arms (3-piece), height-adjustable lifting pads (standard 50 mm); synchronisation via a stainless steel toothed shaft; audible signal (CE-stop); galvanised surface; arm range 560–1140 mm
- Manufacturer: Pitlift
