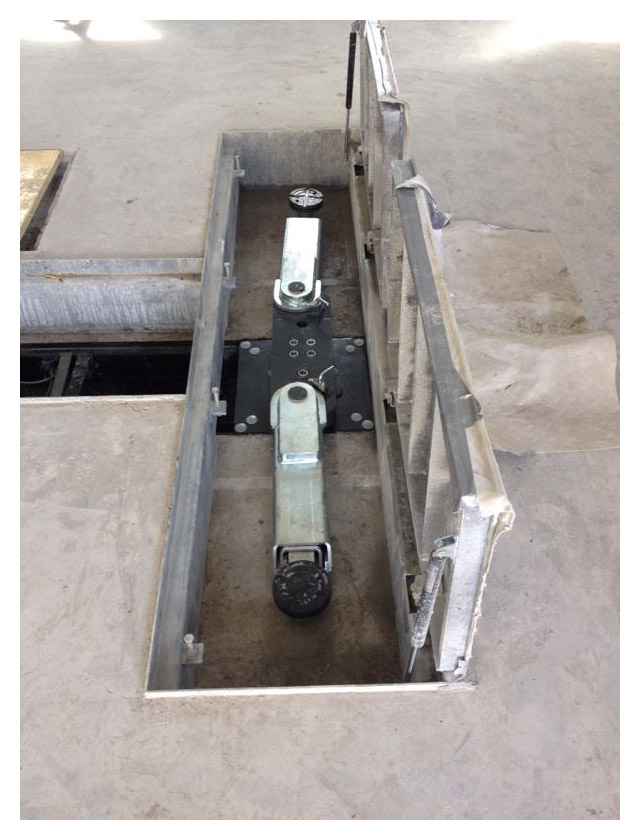

Floor-level two-ram lift P2-50 BK-50 with swing-arm supports, 5 t, 2000 mm stroke (P2-50.19-BK50, PITLIFT)
Complete floor-level (recessed) two-ram lift P2-50 BK-50 with CE-Stop, swing-arm support in RAL7016, galvanized lifting arms and arm extensions, standard support plates, hydraulic power unit, control box and covers. Supplied without hydraulic oil.
- Capacity: 5 t
- Arm extension without extensions: 625-1205 mm
- Arm extension with extensions: 1145-1575 mm
- Stroke from top of head plate: 2000 mm
- Usable stroke from finished floor: 1760 mm
- Support plates: Standard (75)
- Colour: RAL7016
- Cylinder diameter: 2x125 mm
- Cylinder spacing: 2300 mm
- Hydraulic oil volume: 100 l
