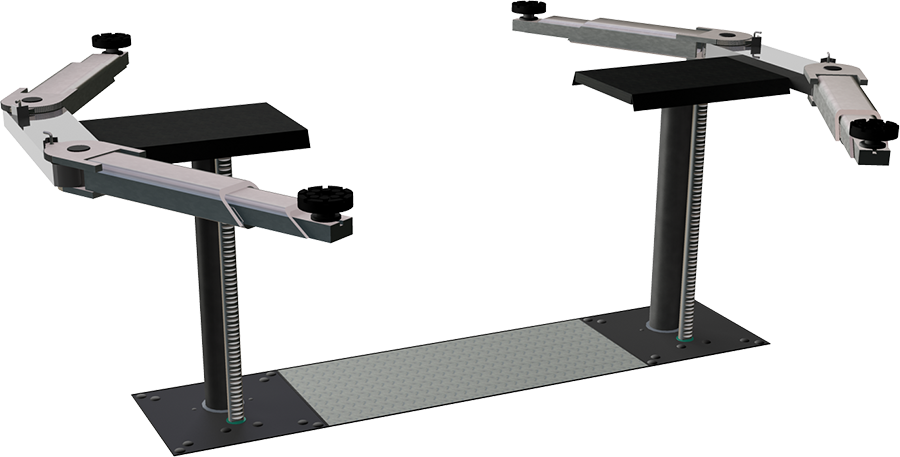

P2-35 two-ram lift with KK-35 swing-arm support, complete, 3.5 t, 1900 mm stroke (P2-35.19-KK35, PITLIFT)
Complete P2-35 two-ram lift with CE-Stop, adapter and KK-35 swing-arm support.
- Capacity: 3.5 t
- Stroke: 1900 mm
- Ram diameter: 2 x 90 mm
- Ram spacing: 1350 mm
- Arm extension length: 560-1140 mm
- LK: 60 mm
- Hydraulic oil volume: 55 l (supplied without oil)
- Scope of delivery: swing-arm support in RAL7016, electrogalvanized support arms, standard support plates (75), hydraulic power unit, control box and cover
