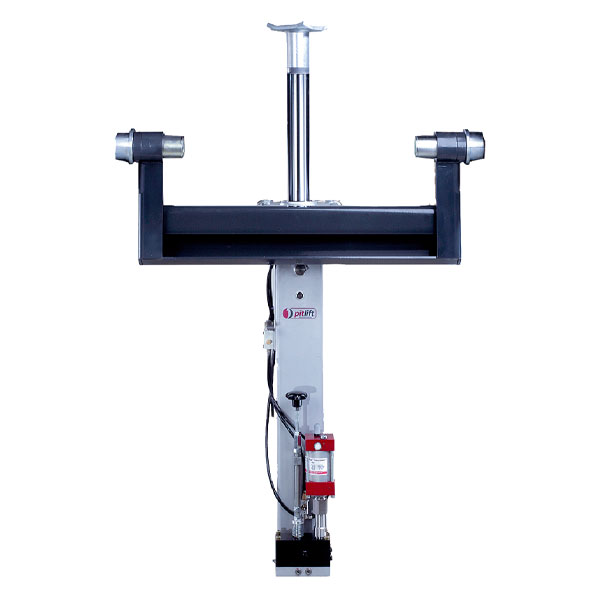

Pit axle jack, hydraulic-pneumatic, 20.5 t (P-PH-L 20/750, PITLIFT)

Specifications
Capacity T 20.5
Hydraulic cylinder stroke mm 750
Overall height mm, 1075
Cylinder diameter mm 60
Weight kg. 155
Warranty months 12.
Description
Travelling along the pit edges
Fully hydraulic control
PITLIFT anti-corrosion protection ensures periodic cylinder lubrication
Pneumatic cylinder return (6 bar pressure required in the compressed air system)
Lifting and approach to the lifting point by means of an air-hydraulic pump
All lift components are made of steel or aluminium
The lift rollers have needle bearings and lubrication points
The hydraulic cylinder is polished and coated with a thick chrome layer
The lift is exceptionally easy to use. The components used during lifting are arranged compactly and ergonomically
Overload valve
Protection against sudden dropping
Made in Germany
Before placing an order with the manufacturer, this form must be filled in (according to the pit in which the pit lift will be used)
