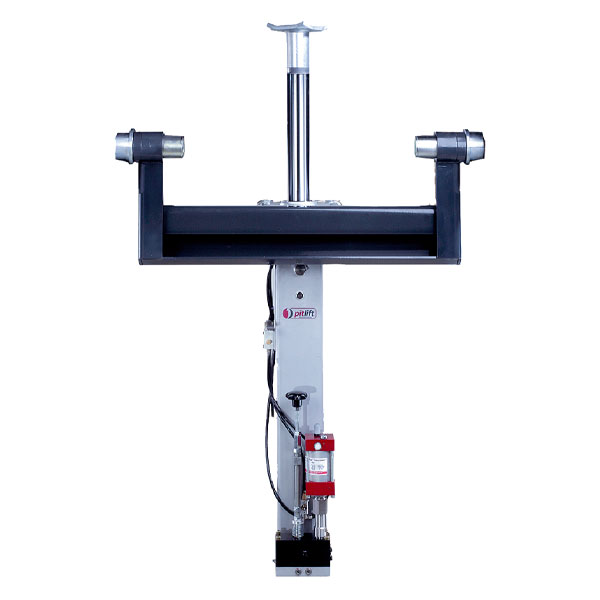

Pit axle jack, hydraulic-pneumatic, running along pit edges, 16.5 t (P-PH-L 16/750, PITLIFT)
PITLIFT P-PH-L 16/750 – telescopic pit axle lift travelling along the pit edges, with hydraulic-pneumatic control.
- Manufacturer: PITLIFT
- Manufacturer code: P-PH-L 16/750
- Capacity: 16.5 t
- Lifting stroke: 750 mm
- Lifting cylinder diameter: 70 mm
- Overall height: 1075 mm
- Pneumatic pressure: 8–10 bar
- Weight: 190 kg
- Fast lifting without load and load lifting controlled by pedals
- Hard chrome-plated ram rod and pump piston
- Air preparation system with water separator and oil atomiser
- Chassis with needle bearings, adaptable to the pit dimensions
- Made in Germany
