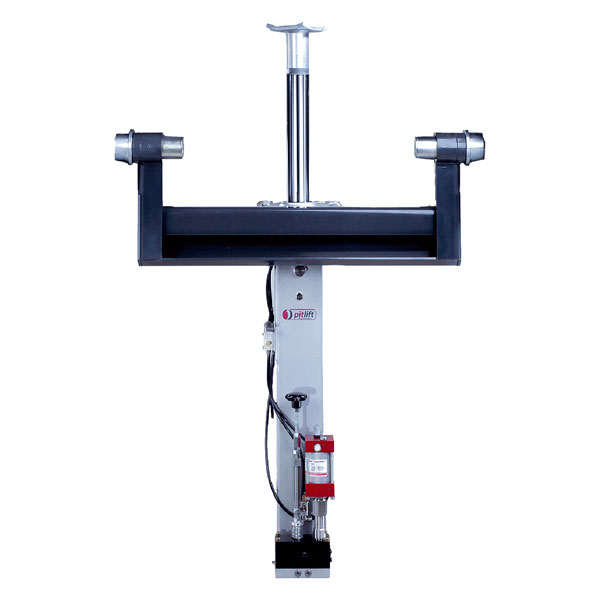

Pit axle jack, hydraulic-pneumatic, 14.5 t (P-PH-L 14/750, PITLIFT)

Capacity T 14
Hydraulic cylinder stroke mm 750
Overall height mm, 1075
Cylinder diameter mm 60
Weight kg. 168
Description
Travelling along the pit edges
Fully hydraulic control
PITLIFT anti-corrosion protection ensures periodic cylinder lubrication
Pneumatic cylinder return (6 bar pressure required in the compressed air system)
Lifting and approach to the lifting point by means of an air-hydraulic pump
All lift components are made of steel or aluminium
The lift rollers have needle bearings and lubrication points
The hydraulic cylinder is polished and coated with a thick chrome layer
The lift is exceptionally easy to use. The components used during lifting are arranged compactly and ergonomically
Overload valve
Protection against sudden dropping
Made in Germany
