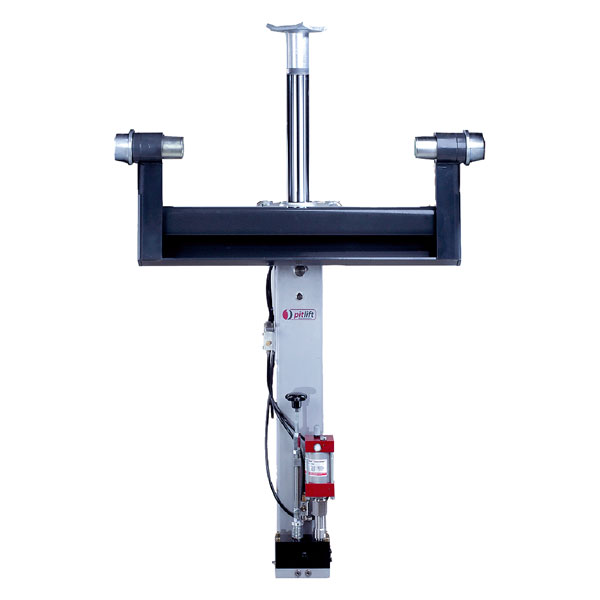

Pit lift axle hydraulic 14.5T Pitlift (P-PH 14/750)

Carrying capacity T 14.5
Hydraulic cylinder stroke mm 750
Total height mm, 1075
Cylinder diameter mm 70
Weight in kg. 168
Description
Driving around the edges of the pit
Fully hydraulic control
PITLIFT anti-corrosion protection ensures periodic lubrication of the cylinder
Cylinder return pneumatic (requires 6bar pressure in the compressed air system)
Lifting with the help of a hand pump
All components of the lift are made of steel or aluminum
Hoist wheels with needle bearings, have lubrication points
The hydraulic cylinder is polished and covered with a thick layer of chrome
The lift is extremely easy to use. The elements used during lifting are arranged compactly and ergonomically
Overload valve
Protection against a sudden fall
made in Germany
