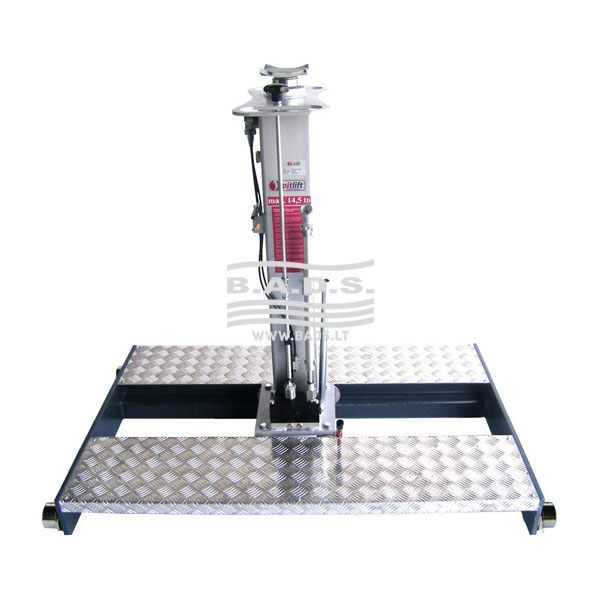

Pit axle jack traveling along the pit floor, 16.5 t (P-HP 16/750, PITLIFT)
PITLIFT P-HP 16/750 – pit axle lift moving along the pit floor; lifting by hand pump, cylinder approach and lowering are pneumatic.
- Manufacturer: PITLIFT
- Manufacturer code: P-HP 16/750
- Capacity: 16.5 t
- Lifting stroke: 750 mm
- Ram diameter: 70 mm
- Overall height: 1171 mm
- Working pressure: 8–10 bar
- Cylinder coated with a thick chrome layer
- Air preparation unit with moisture collection and continuous cylinder lubrication
