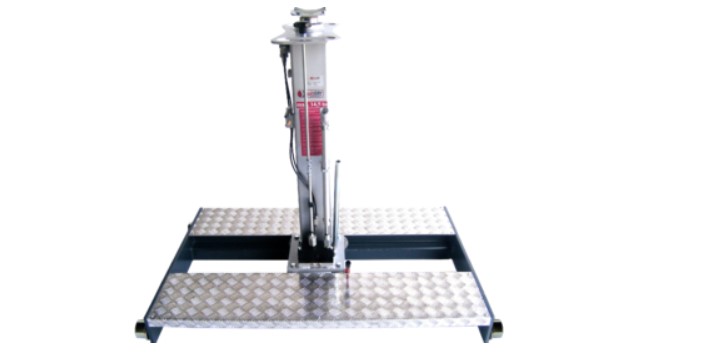

Pneumatic-hydraulic pit lift, 14 T, PITLIFT (P-HP 14/750U)

The slim, square cylinder design optimises work inside the pit. The rust protection ensures optimal lubrication of the ram and the cylinder. A water separator and an oil atomiser are included. Load lifting is controlled by a hand pump. Pneumatic raising of the ram rod is controlled by a pedal, and forced lowering is performed manually. The cylinder and pump pistons are hard chrome-plated. The base carriage with rollers is guided by a U profile, with an aluminium plate cover and an adjustable side across the full width. Easy-running guide rollers ensure mobility inside the pit.

Capacity: 14.5 T;
Lifting height: 750 mm;
Ram diameter: 60 mm;
Pin diameter: 45 mm;
Overall height: 1171 mm;
Compressed air connection: 8 - 10 mm;

SCOPE OF DELIVERY:
Standard support plate, P-PST16, PITLIFT
Small support plate, P-PS16, PITLIFT
