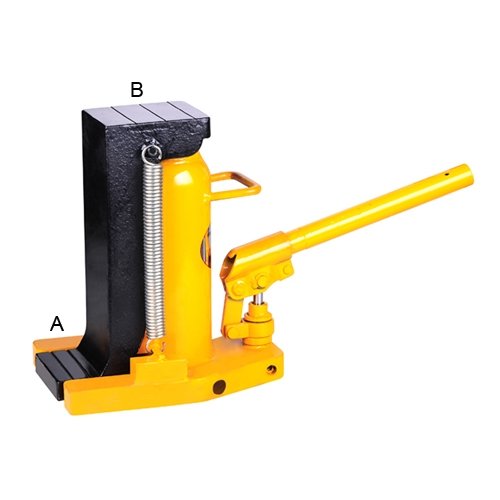

⬡ Hydraulic track cylinder 10t/20t (MHC20)
Capacity A = 10 t
Capacity B = 20 t
Min height A = 25 mm
Max height A = 178 mm
Min height B = 322 mm
Max height B = 480 mm
Stroke 158 mm
Ram Ø 53 mm
Weight 40.0 kg
Package size 330 x 250 x 360 mm
