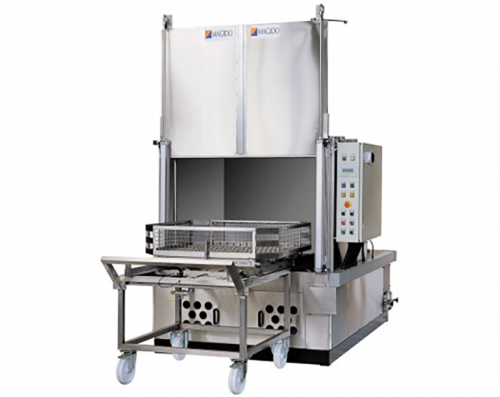

Two-tank hot cleaning washer X53/2, natural gas burner, 400V 3Ph+N (L192M, MAGIDO)
MAGIDO L192M is a two-tank X53/2 series hot wash and rinse machine with a natural gas burner. It suits gas-supplied plants and workshops washing and rinsing heavy components in one cycle.
- Basket: 1300x1300 mm, load height 900 mm, max load 700 kg
- Tanks: 580 l wash and 380 l rinse, working temperature up to 75 °C
- Pumps: wash 500 l/min at 4.5 bar (10 hp); rinse 350 l/min (5.5 hp)
- Heating: natural gas burner 29000 kcal/h instead of electrical, 24+16 kW with burner
- Power: 49 kW total installed, 400V 3Ph+N
- Overall size: 2300x4500x3200 mm
- Code: L192M
