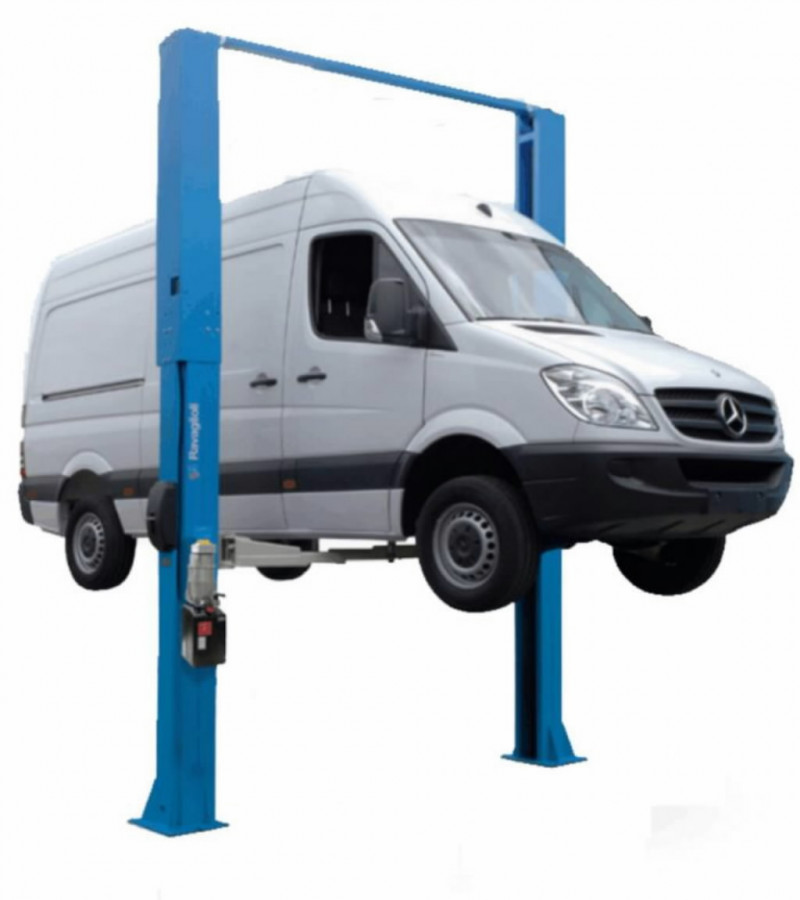

Electro-hydraulic 2-post lift 4,5 T, RAVAGLIOLI (KPH370.45LIK)

Mechanical safety latch with automatic engagement ensuring maximum safety when lift is in standing position. 4.5 t electrohydraulic lift, symmetrical arms for lifting long wheelbase vans and easy loading of cars.
Technical specifications:
Maximum lifting height: 2006 mm
Lifting time: 43 s
Adjustable lifting pad height: 100 - 140 mm
Drive-through width: 2399 mm
Required minimum ceiling height: 4242 mm
Arm configuration: symmetrical
Front lifting arm length: 722 - 1436 mm
Rear lifting arm length: 722- 1436 mm
Motor power: 2,6 kW
Lift width: 3406 mm
Lift height: 4162 mm
Power supply: 400/3/50Hz
