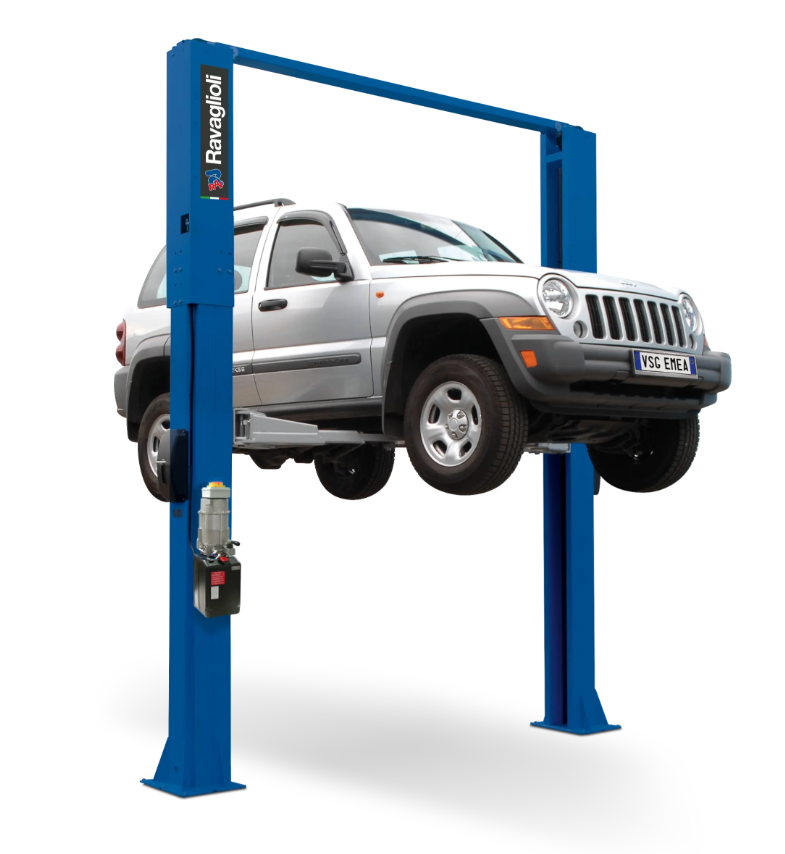

Electro-hydraulic 2-post lift 3,2 T, RAVAGLIOLI (KPH370.32K)

Advantages:
Three-stage short lifting arms and two-stage long lifting arms are asymmetrical,
with automatic locking/unlocking during lifting and lowering.
Each column features a maintenance-free lifting cylinder.
Specifications:
Lifting capacity: 3,2 T
Max. Lifting height: 1990mm
Short lifting arm length: 500–900 mm (three positions)
Long lifting arm length: 800–1198 mm (two positions)
Lifting time: 33 seconds
Arm Layout: asymmetrical
Distance between columns: 2916 mm
Drive-through width: 2280 mm
External lift height: 4162 mm
Power supply: 400 V | 50 Hz; 3 ph
Motor power: 2.6 kW
Weight: 750 kg
