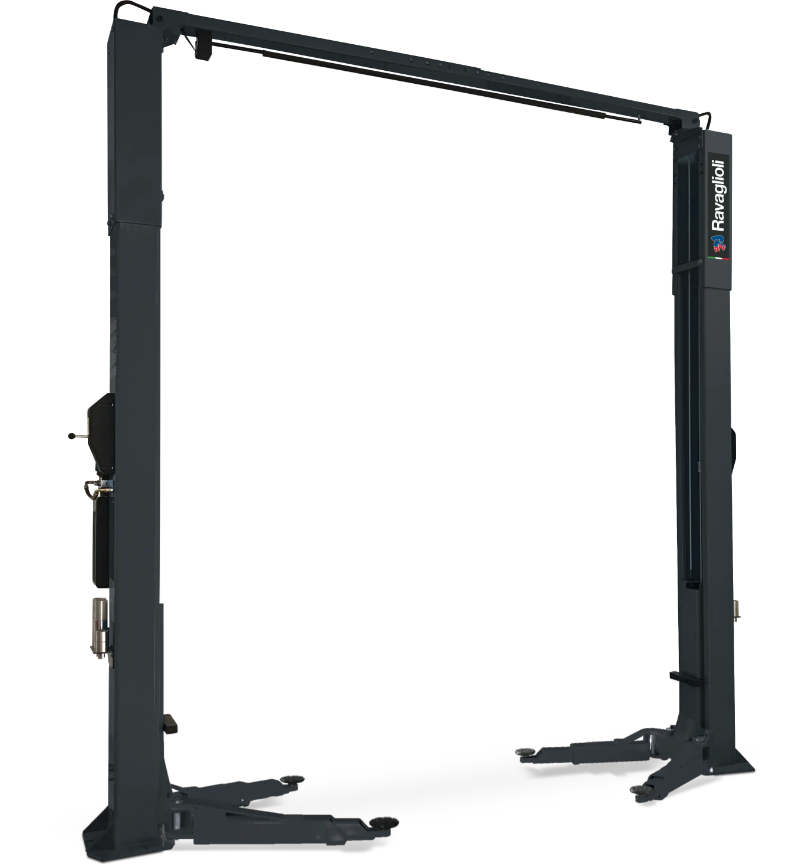

Electro-hydraulic 2-post lift, 4,5T, RAVAGLIOLI (KPH350.45, RAV)

Three-stage short lifting arms and two-stage long lifting arms are asymmetrical,
with automatic locking/unlocking during lifting and lowering.
The lift is suitable for lifting vans and SUVs, featuring mechanical safety locks.
The lift is powder-coated in RAL 7016 color.
Specifications:
Lifting capacity: 4.5 T
Lifting height: 100–1863 mm (up to 1928 mm with extensions)
Short lifting arm length: 611–1131 mm (three positions)
Long lifting arm length: 802–1235 mm (two positions)
Lifting time: 54 seconds
Arm Layout: asymmetrical
Distance between columns: 2916 mm
Drive-through width: 2659 mm
External lift height: 4000 mm
Power supply: 400 V | 50 Hz; 3 ph
Motor power: 2.2 kW
Weight: 750 kg
