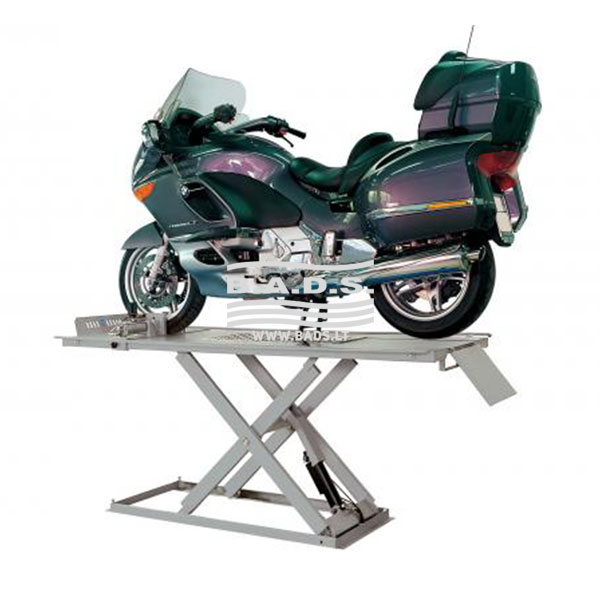

Electro-hydraulic lift for motorcycles 600kg., RAVAGLIOLI (KP1396E)
750 x 2200 mm Electro-hydraulic scissors lift for motorbikes
(KP1396E) or three- or four-wheel vehicles (KP1396TE).
The control unit is usually positioned at the left of the access
direction, at about 1 mt from the platform. With special kits available on demand, the control unit can be placed in a different
position.
Technical specification:
Capacity 600kg
Motor:kW 0,37 - 3Ph kW 0,55 - 1Ph
Rise time: 21 sec
Descent time: 13 sec
Weight: 140 kg
Sound emission: ≤ 70 dB (A)
