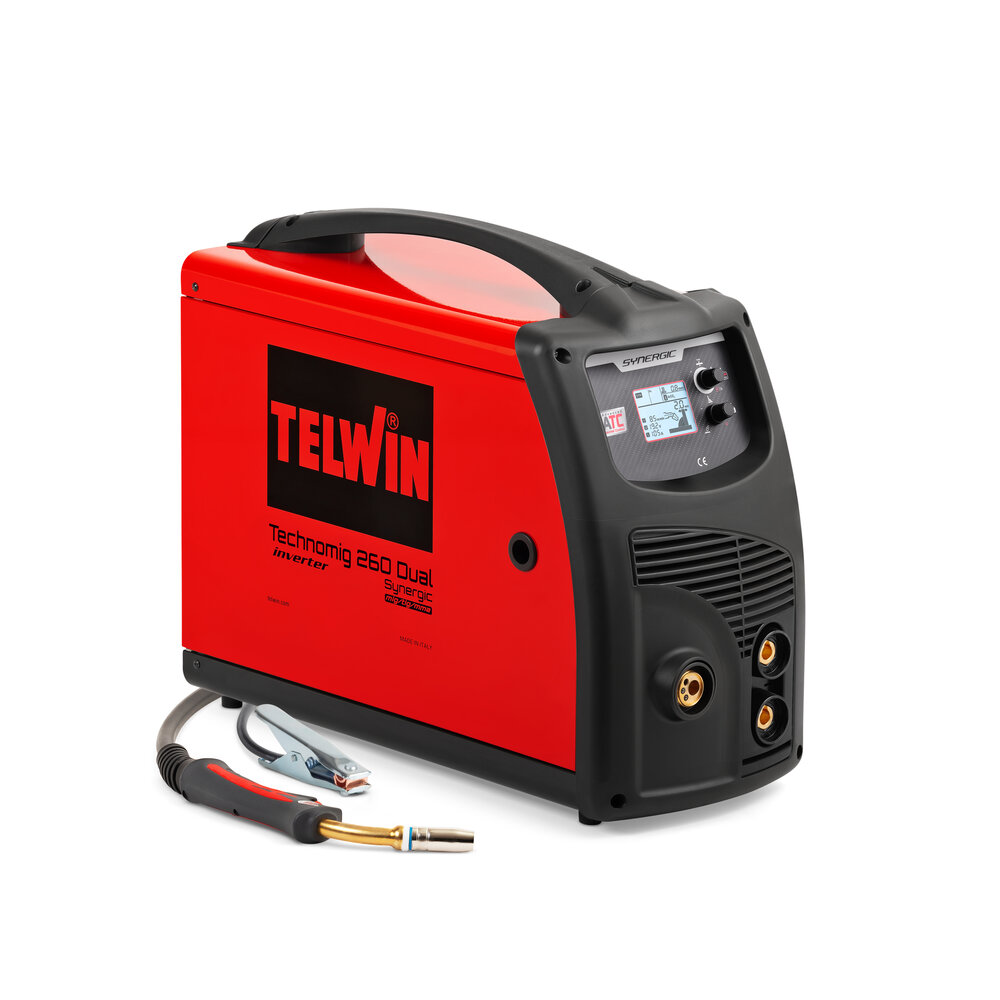

Multiprocess MIG/MAG welder TECHNOMIG 260 DUAL SYNERGIC (816056, TELWIN)
- Multiprocess inverter welding machine (MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift), 250A. With LCD display.
- OneTouch synergic adjustment: easy to use. 29 pre-set synergic curves.
- Max. spool 15 kg (Ø 200 / 300 mm).
- ATC (Advanced Thermal Control) to facilitate welding on thin materials.
- MMA: Advanced arc control devices: arc force, hot start, anti-stick.
- Contained weight and compactness for easy transport.
Technical data
| Mains voltage (1-phase) | 230 V |
| Mains frequency | 50 / 60 Hz |
| Max no-load voltage (DC) | 60 V |
| Welding current range (DC) | 20 - 250 A |
| Max DC current (EN60974-1) | 220 @ 20% A |
| Current at 35% duty cycle (DC) | 170 A |
| Current at 60% duty cycle (DC) | 130 A |
| Max absorbed current | 39 A |
| Absorbed current at 60% | 22 A |
| Max absorbed power | 6,3 kW |
| Absorbed power at 60% | 3,3 kW |
| Efficiency | 87 % |
| Usable electrode diameter | 1,6 - 4 mm |
| Steel wire diameter | 0,6 - 1,2 mm |
| Stainless steel wire diameter | 0,8 - 1 mm |
| Aluminium wire diameter | 0,8 - 1 mm |
| Flux-cored wire diameter | 0,8 - 1,2 mm |
| Brazing wire diameter | 0,8 - 1 mm |
| Insulation class | H |
| Protection degree | IP23 |
| Dimensions (L × W × H) | 62 x 26 x 49 cm |
| Weight | 22 kg |
| Brand: TELWIN |
