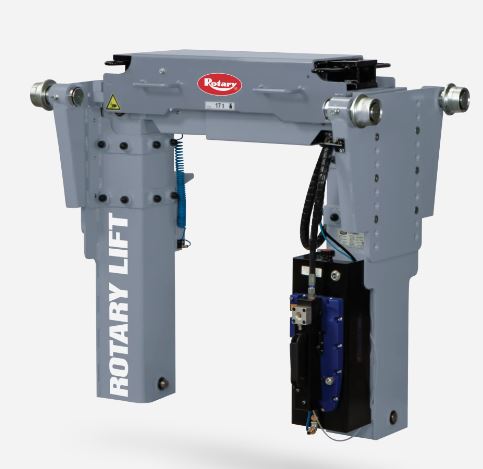

Pit lift, suspended Portal Lift 17 Vario, Blitz (130700, BLITZROTARY)
Mode of drive	hydropneumatic
Operation	manual control
Pit jack design	suspended
Quick lift	not possible
Forced return	standard
Telescopability	1-fold
Rated load capacity	17000kg
Stroke	600mm
Max. lifting height	600mm
Lifting time loaded	145
Lowering time loaded	172
Plunger diameter	80 | 100mm
Peg diameter	60 | 75mm
Carriage	deep, vertically and transversely adjustable
Undercarriage lenght	885 – 1110mm
Undercarriage width	280mm
Undercarriage adjustment range	510 – 775mm
Operating pressure	6 – 10bar
Surface coating	Lacquered
Corrosion preventing	Cathodic electrodeposition coating (CEC)
Air supply	8 – 10bar
Max. air supply	10bar
