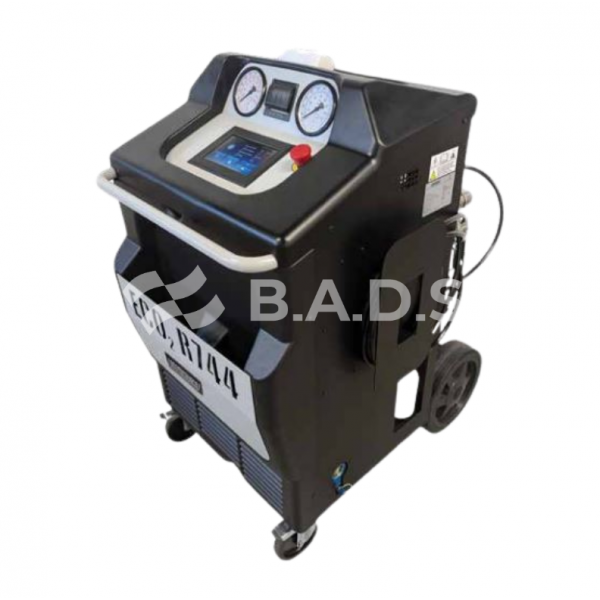

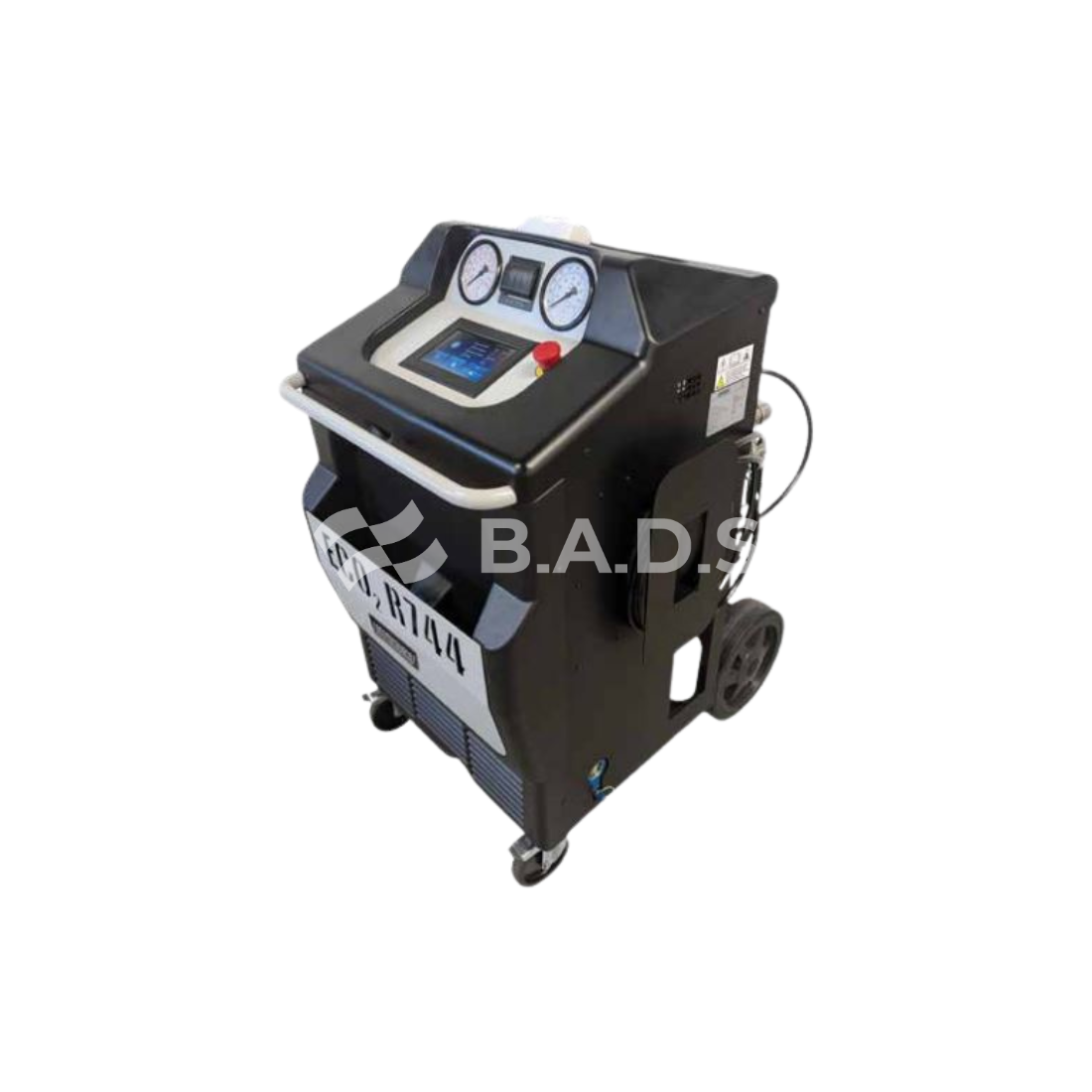

A/C Charging Station ECO₂R744, Ecotechnics

The ECO₂R744 is a fully automatic air conditioning service station, specifically designed for R744 (CO₂) systems. It meets high-pressure and safety requirements, ensuring reliable and efficient operation.
Key Features:
7-inch touchscreen display – intuitive control and fast navigation.
Fully automatic operation – servicing, evacuation, and refilling in one station.
Integrated CO₂ concentration monitoring – ensures safety.
142 l/min two-stage vacuum pump – suitable for large systems (buses, trains).
Automatic oil and UV dye injection – managed via hermetic containers.
Pressure testing with nitrogen or nitrogen-hydrogen mixture.
Wi-Fi connectivity and USB interface – easy software updates.
Extremely robust construction – protects against mechanical damage.
Environmentally friendly packaging – made of wood and paper, without polystyrene.
Technical Specifications:
Refrigerant: R744 (CO₂)
Vacuum pump: 142 l/min, 3 Pa / 0.03 mbar
Operating temperature: 10–48 °C
Power supply: 220-240V 50/60 Hz (CE), 110V 60 Hz (ETL)
Pressure gauges: 100 mm diameter
Maximum operating pressure: 170 bar
Dimensions / Weight: 67 x 88 x 110 cm, 90 kg
