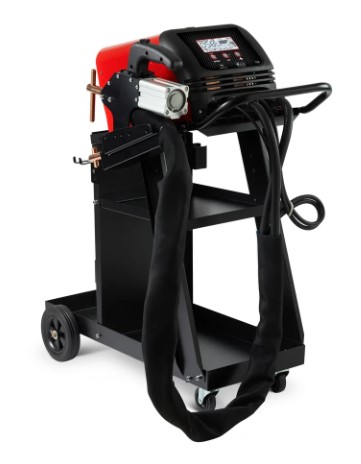

Punktmetināšanas aparāts Digital Spotter 7000 ar pneimatiskajām knaiblēm (823198, TELWIN)
- Electronic spot welding machine with air cooled pneumatic clamp and LCD display. With trolley.
- The multi-functional LCD digital panel allows automatic adjustment of the parameters based on the choice of tool.
- Automatic control of the gun cooling.
- Mains voltage monitor.
- Suitable for spot welding sheet metal with a maximum thickness of 1.5+1.5mm.
- Studder kit connection possible. Numerous arms and electrodes available.
Technical data
| Mains voltage (2-phase) | 400 V |
| Mains frequency | 50 / 60 Hz |
| Max spot-welding current | 4500 A |
| Secondary no-load voltage | 8,6 V |
| Max absorbed power | 27,3 kW |
| Rated power (X=50%) | 6,7 kW |
| Max welding thickness (2 sheets) | 1,5 + 1,5 mm |
| Duty cycle | 3 % TROLLEYS AND ACCESSORIES 803084 TROLLEY - AMERICA |
| Insulation class | H |
| Protection degree | IP22 |
| Dimensions (L × W × H) | 52 x 38 x 88,5 cm |
| Weight | 50 kg |
| Ražotājs: TELWIN |
