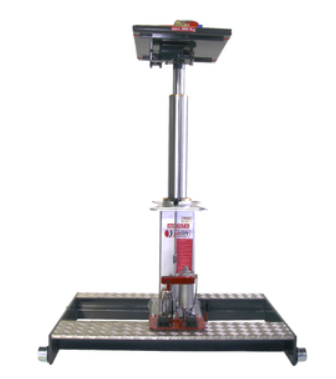

Telescopic pit axle jack (P-THP 14/1200U/L, PITLIFT)

Hydraulic transmission powered by air
the slim square cylinder design increases the working space inside the pit
the PITLIFT rust protection system ensures optimal lubrication of the ram rod and the cylinder
standard maintenance unit with water separator and oil atomiser
automatic load lifting by foot, driven by an air motor
pneumatic quick “up” lifting moves the ram rod to the lifting points within seconds; foot operation
forced cylinder return – the lifting ram is quickly moved back to the rest position; hand operation
sensitive control with the foot pedal allows the lifting cylinder to be brought precisely up to the load
hard chrome-plated ram rod
hard chrome-plated pump piston
lift travelling along the pit floor
easy-running guide rollers
Weight 355 kg
Rated capacity 14.5 t
Lifting height 1.200 mm
Ram rod diameter 70 mm
Pin diameter 45 mm
overall height 890 mm
Compressed air connection 8 - 10BAR
Operation hydraulic/pneumatic.
