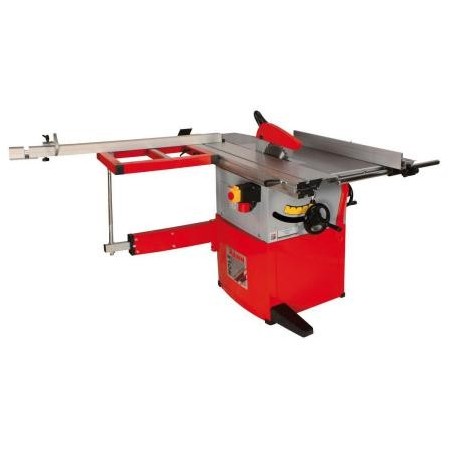

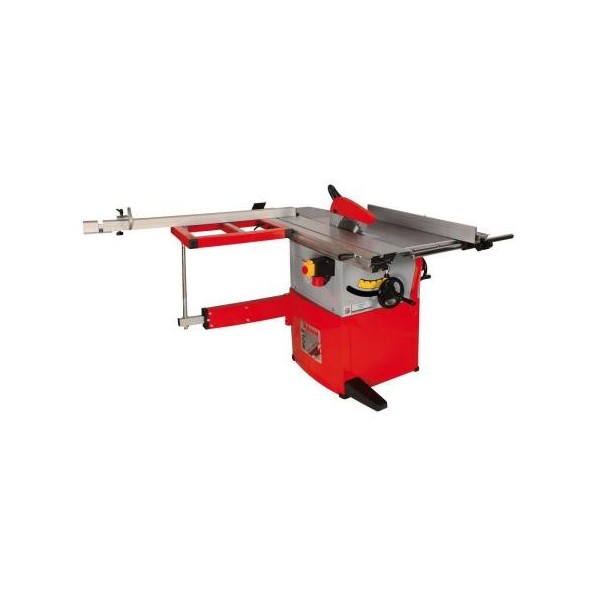

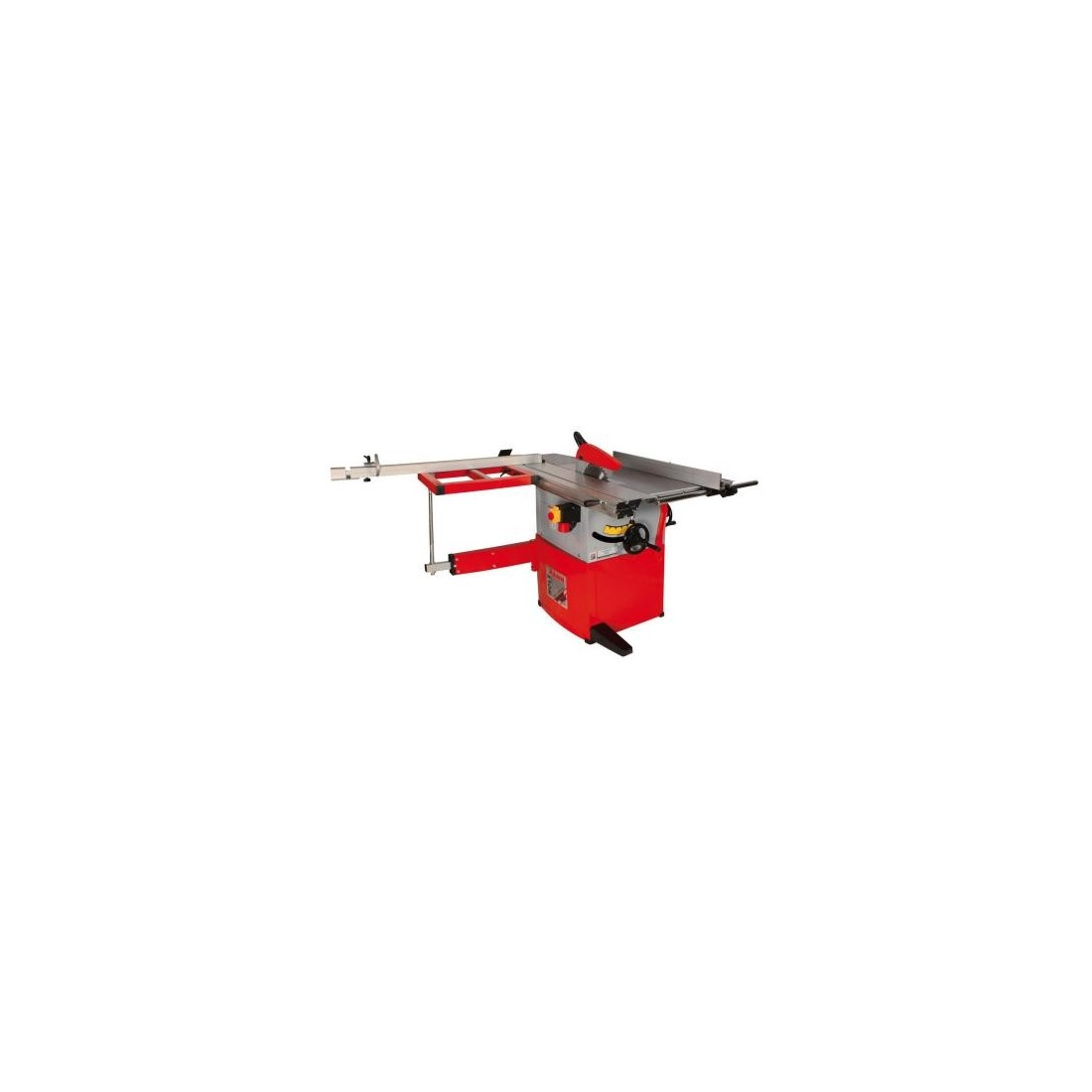

Panel saw, TS250FL_230V, Holzmann

TS250FL_230V is a sliding table saw designed for cutting solid wood, furniture panels, and other wooden workpieces in workshop environments. This model belongs to the entry-level class, offering an excellent balance between price and functionality, making it well suited for small workshops, training facilities, or individual users.

The machine features a very stable grey cast iron table with extension, ensuring accurate and safe workpiece support. The saw blade height and tilt angle are smoothly and precisely adjusted via a handwheel, with the blade tilting up to 45°. A parallel fence with micro-adjustment allows accurate setting of the cutting width. The 1320 mm sliding table, combined with a workpiece stop and telescopic fence, facilitates precise and repeatable long cuts.

Key information:
– Sliding table: 1320 × 238 mm
– Max. cutting height: 80 mm (90°), 59 mm (45°)
– Max. cutting width at parallel fence: 600 mm
– Saw blade tilt: up to 45°
– Saw blade: Ø250 mm, 4000 rpm
– Motor power: 1500 W (S1) / 2200 W (S6), 230 V
– Dust extraction port: Ø100 mm
– Table size / height: 800 × 350 mm / 850 mm
