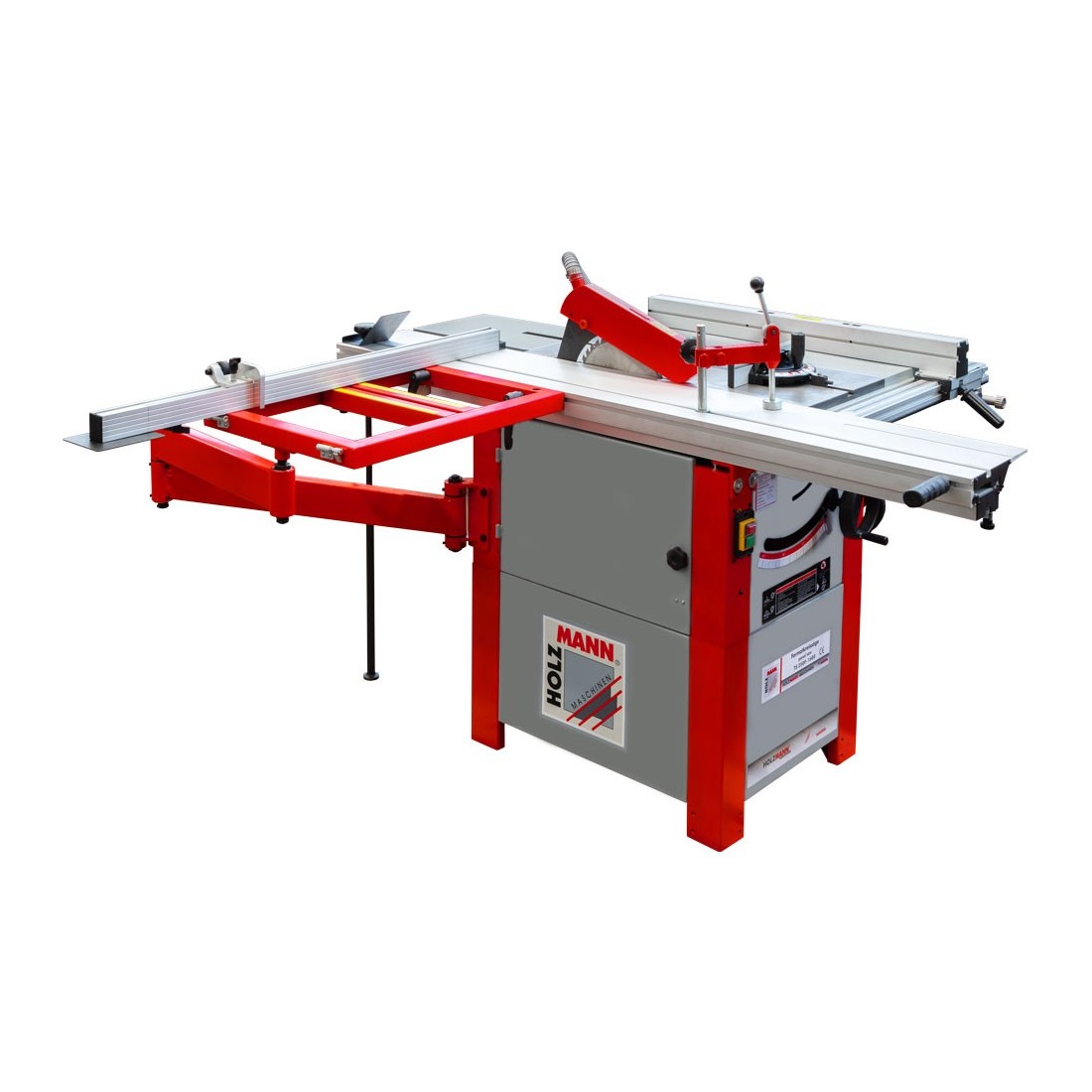

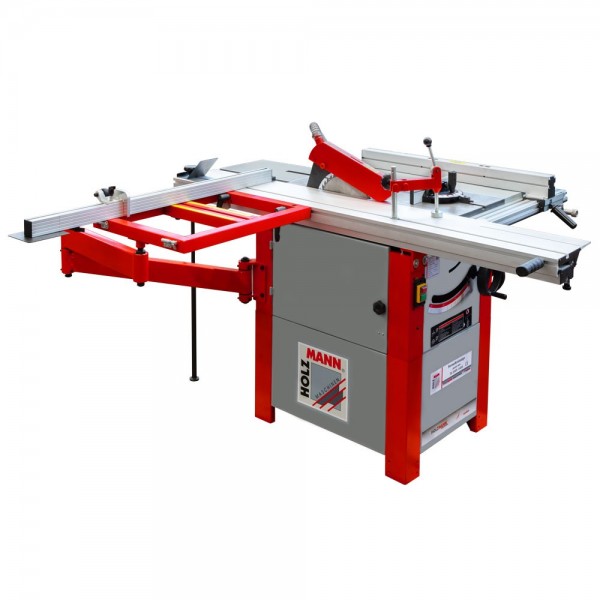

Panel saw, TS250F1600_230V, Holzmann

TS250F1600_230V is a sliding table saw designed for precise cutting of solid wood, furniture panels, and other wooden workpieces in workshops and small-scale production environments. The saw blade height and tilt angle are adjustable, allowing both straight and angled cuts to be performed accurately.

The machine features a grey cast iron main table with extensions on the right-hand and rear sides, as well as a 1600 mm aluminium sliding table that ensures smooth and precise workpiece feeding. A robust outrigger table with a support roller allows safe handling of large-format panels. The extendable mitre fence with workpiece end stop and the telescopic rip fence further enhance cutting accuracy.

Key information:
– Application: panel and solid wood cutting
– Sliding table: 1600 × 238 mm
– Max. cutting height: 80 mm (90°), 60 mm (45°)
– Max. cutting width at rip fence: 590 mm
– Max. cutting length: 1400 mm
– Saw blade adjustment: height and tilt angle
– Saw blade: Ø250 mm, 3600 rpm
– Motor power: 2200 W (S1) / 3100 W (S6), 230 V
– Dust extraction port: Ø100 mm
