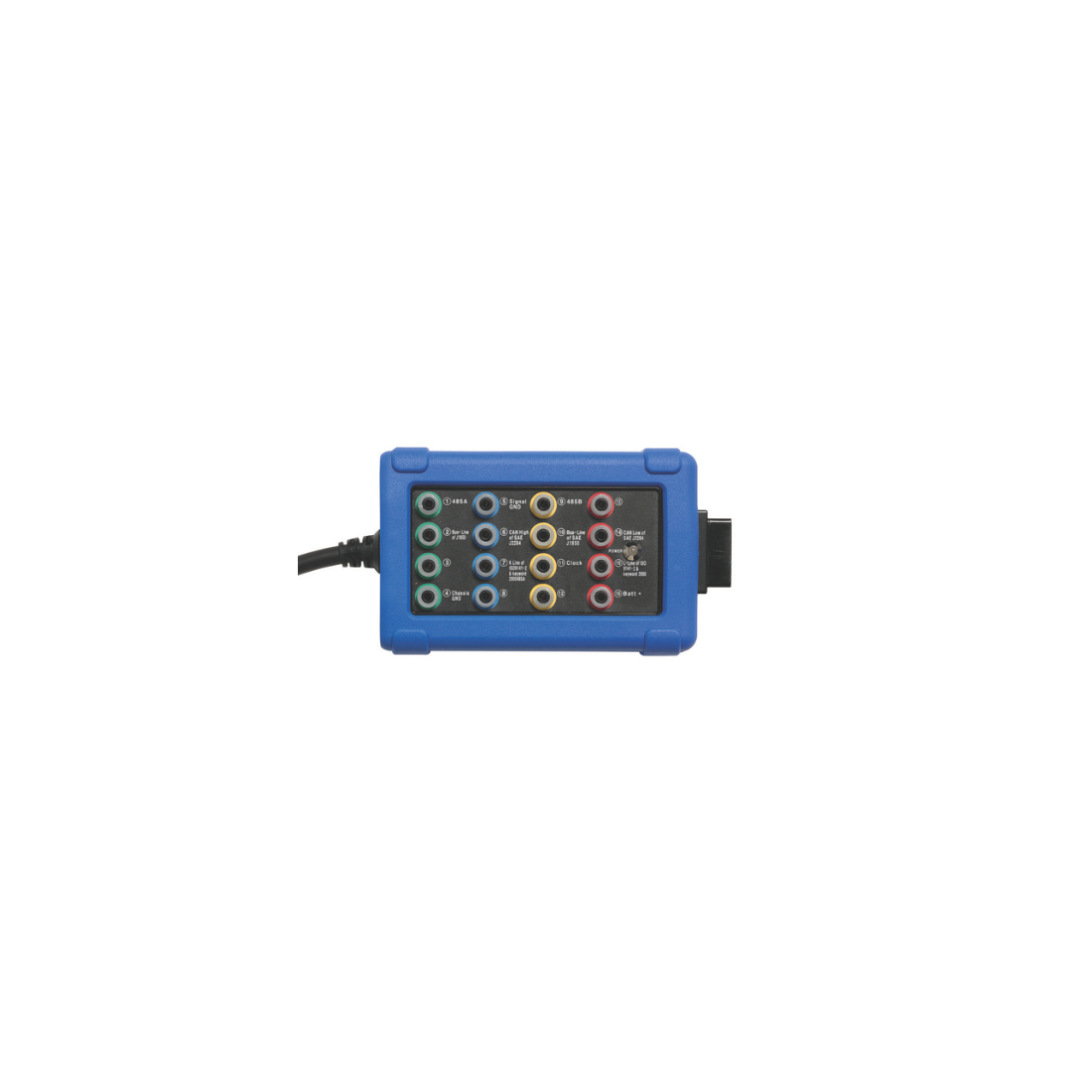

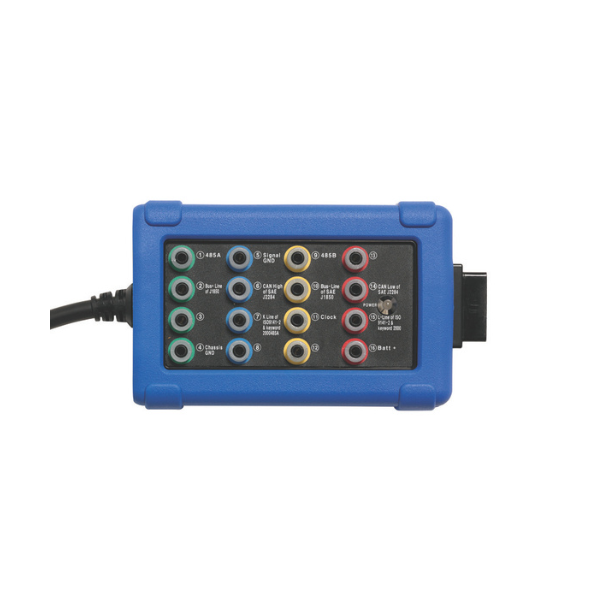

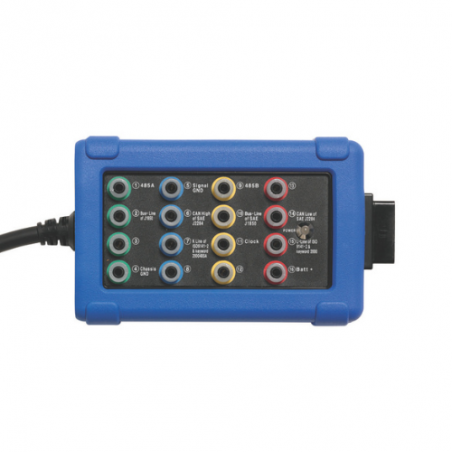

CAN test box, PP619, Pico Technology

AN Test Box, PP619 is a professional diagnostic tool that provides quick access to all 16 pins of a vehicle’s OBDII / EOBD diagnostic connector. The unit allows non-intrusive testing of power, ground and CAN bus signals, and enables connection of an oscilloscope for detailed signal analysis.
Integrated backlit LED indicators display active signals on the corresponding pins in real time, while pulsing LEDs allow evaluation of CAN High and CAN Low activity.
The CAN Test Box is compatible with PicoScope and other oscilloscopes, features 4 mm banana sockets, and allows simultaneous use of an oscilloscope and a diagnostic scan tool via a pass-through connector.
Key features:
– Suitable for 12 V and 24 V vehicles.
– CAN High / CAN Low signal monitoring.
– Power and ground circuit testing.
– LED indication for all 16 pins.
– Pass-through connector for scan tool use.
– 4 mm connections for oscilloscope probes.
Kit contents:
CAN Test Box, 4 mm adapters, 2.5 m cable.
