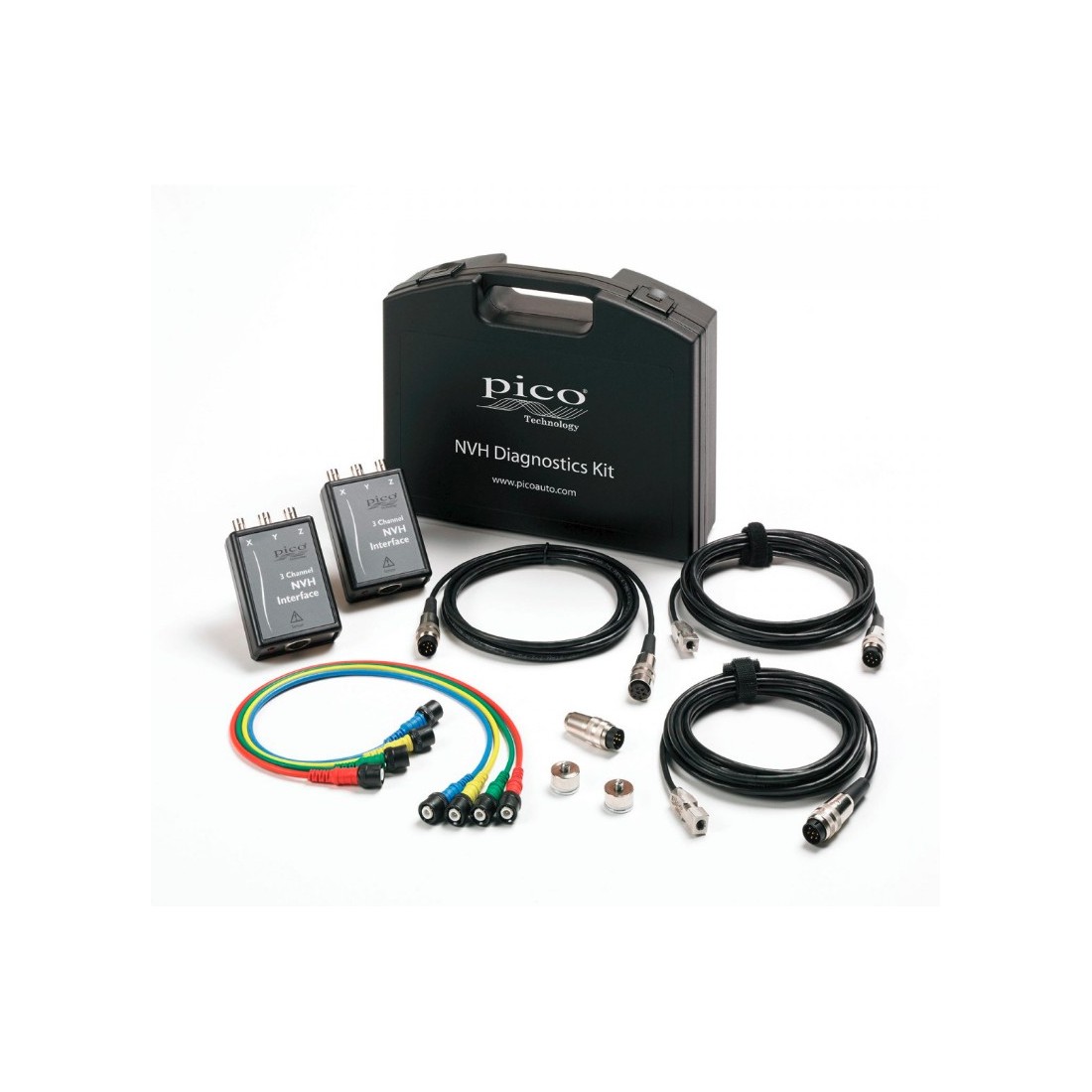

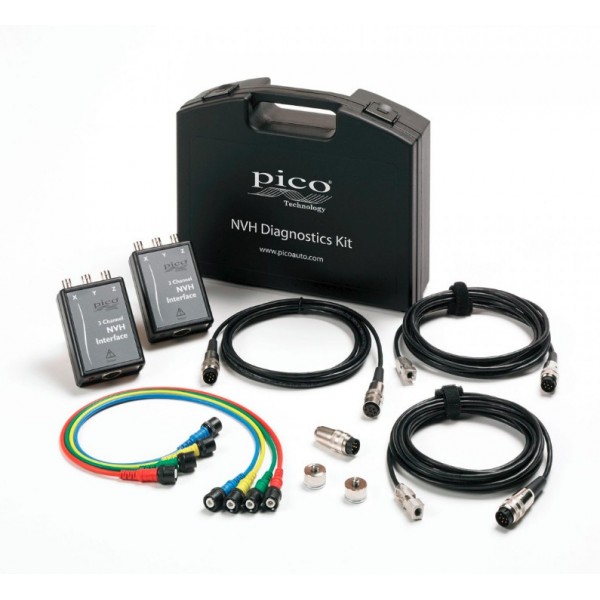

NVH Standard Diagnostic Kit with Carry Case, PQ129, Pico Technology

NVH Standard Diagnostic Kit with Carry Case, PQ129, Pico Technology is a professional solution for diagnosing noise, vibration and harshness (NVH) issues in automotive applications. The kit is designed for real-time vibration and noise analysis during road tests, with recorded data available for detailed post-test evaluation using PicoDiagnostics NVH software.
Results can be displayed as frequency charts, 3D frequency plots, RPM order or road speed views, enabling accurate identification of vibration sources. Data is recorded directly to a laptop or PC, allowing the driver to remain focused on the road during testing.
The kit operates with PicoScope 4000 Series Automotive oscilloscopes and requires no external memory.
Technical information:
Supported oscilloscopes: PicoScope 4425, 4225, 4423, 4223.
Recording time: up to 500 seconds.
Sensors: two 3-axis MEMS accelerometers and a microphone.
Maximum measurable acceleration: ±5 g.
Vibration frequency range: DC to 350 Hz.
Microphone sensitivity: 45 mV/Pa at 1 kHz.
Power supply: CR123(A) 3 V battery.
Compatibility: Automotive PicoScope only, NVH unlock key required.
