PicoScope 4425A Master diagnostic kit, PQ194, Pico Technology

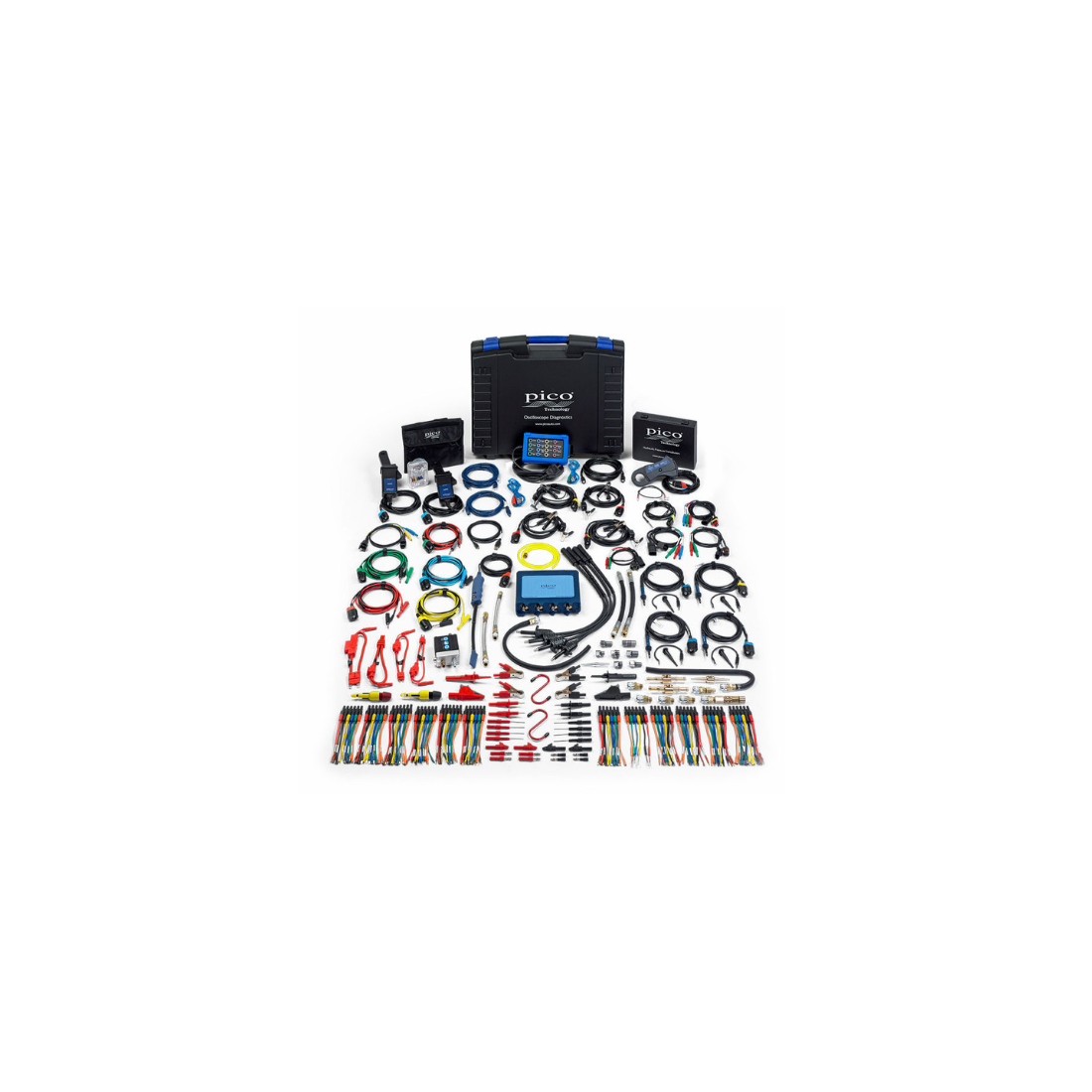

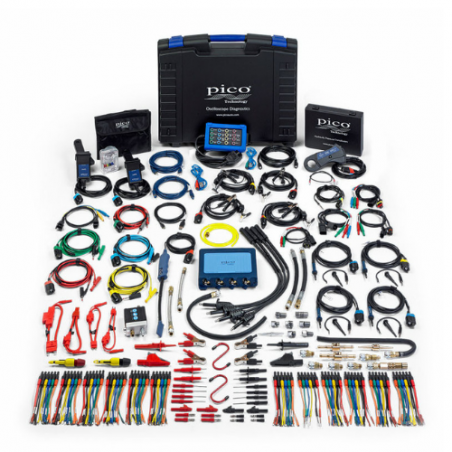

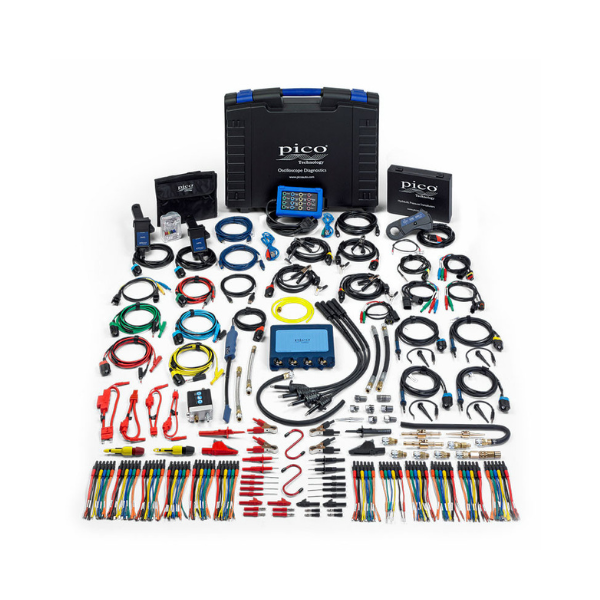

Pico PQ194 Master Diagnostic Kit is the most comprehensive PicoScope 4425A–based solution for advanced automotive and commercial vehicle electrical, electronic, and mechanical diagnostics. The kit is built around the 4-channel PicoScope 4425A oscilloscope module with PicoBNC+™ connectors, enabling automatic probe recognition, probe power supply, and fast system setup.

PQ194 includes an extensive range of professional accessories such as the CAN Test Box, WPS500X pressure transducer, ignition and current probes, fuse extensions, and multiple breakout leads. The diagnostic equipment is supplied in a large, heavy-duty carry case designed for intensive daily workshop use.

The kit is compatible with PicoScope Automotive and PicoDiagnostics software, which is continuously updated with no subscription fees.

Short technical information:
• Channels: 4
• Input ranges: ±50 mV to ±200 V
• Sampling rate: up to 400 MS/s
• Internal memory: 512 MB
• NVH and vehicle network diagnostics support
• PC connection: USB 2.0 / USB 3.0
