Exhaust Extraction System –, FILCAR (TECHNO920/300, FILCAR)

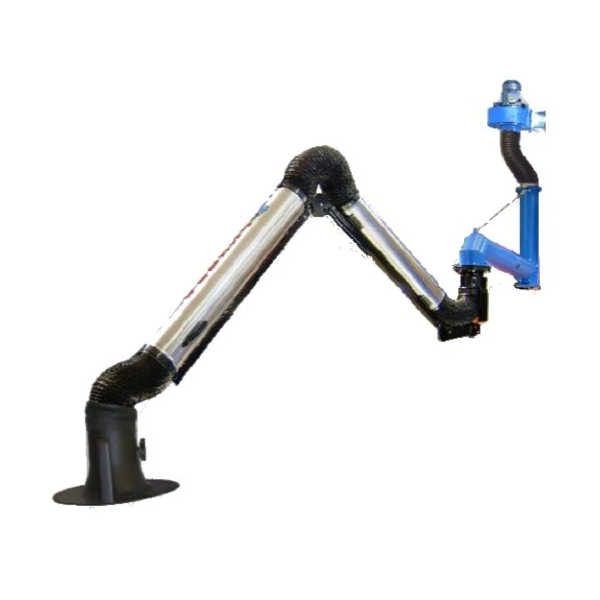

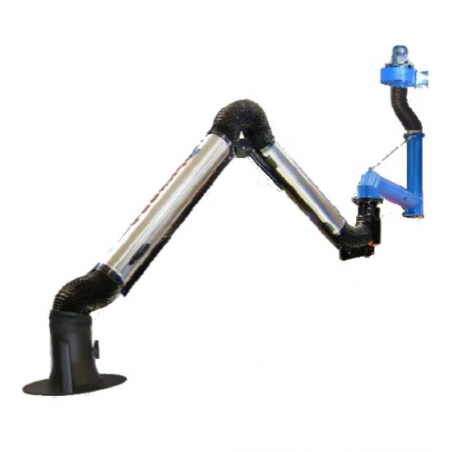

The TECHNO920/300 is a high-performance articulated exhaust gas extraction system designed for workshops and service bays. Its extended reach and robust construction make it ideal for use in environments where flexible and safe exhaust fume removal is essential, especially when working with stationary or idling engines in enclosed spaces.
Hose length: 8.6 meters
Articulated arm length: 4.2 meters
Wall-mounted sliding rail length: 5.0 meters
Maximum working reach: 9.2 meters
Hose specifications:
Diameter: 150 mm (6")
End nozzle (exhaust outlet): 200 mm (8") – R type
Hose material: Heat-resistant and flexible, suitable for high-temperature exhaust gases

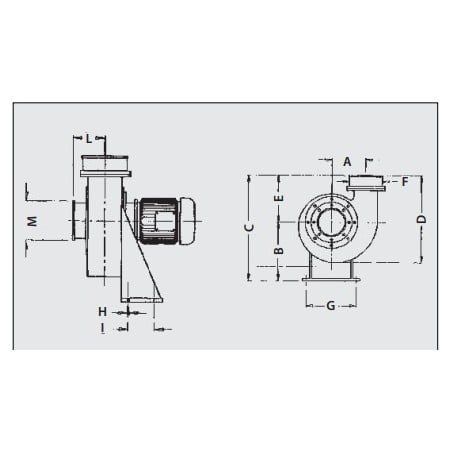

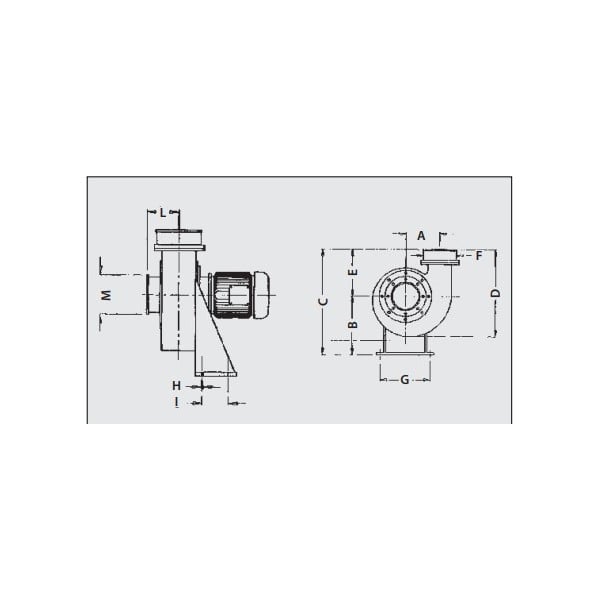

Fan Unit (AL-300):
Model: AL-300
Power supply: 230–400 V | 50 Hz | Three-phase
Motor power: 2.2 kW
Speed: 2800 RPM
Noise level: 78 dB
Weight: 35 kg
Fan housing: corrosion-resistant metal, designed for continuous operation
Key Benefits:
Designed for professional garages and industrial vehicle maintenance stations
Allows for safe extraction of exhaust gases directly from tailpipes
Extended articulated arm ensures maximum maneuverability and reach
Compatible with most vehicles, including cars, trucks, and industrial machinery
