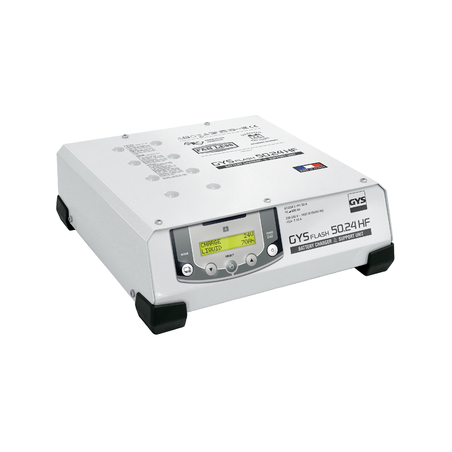

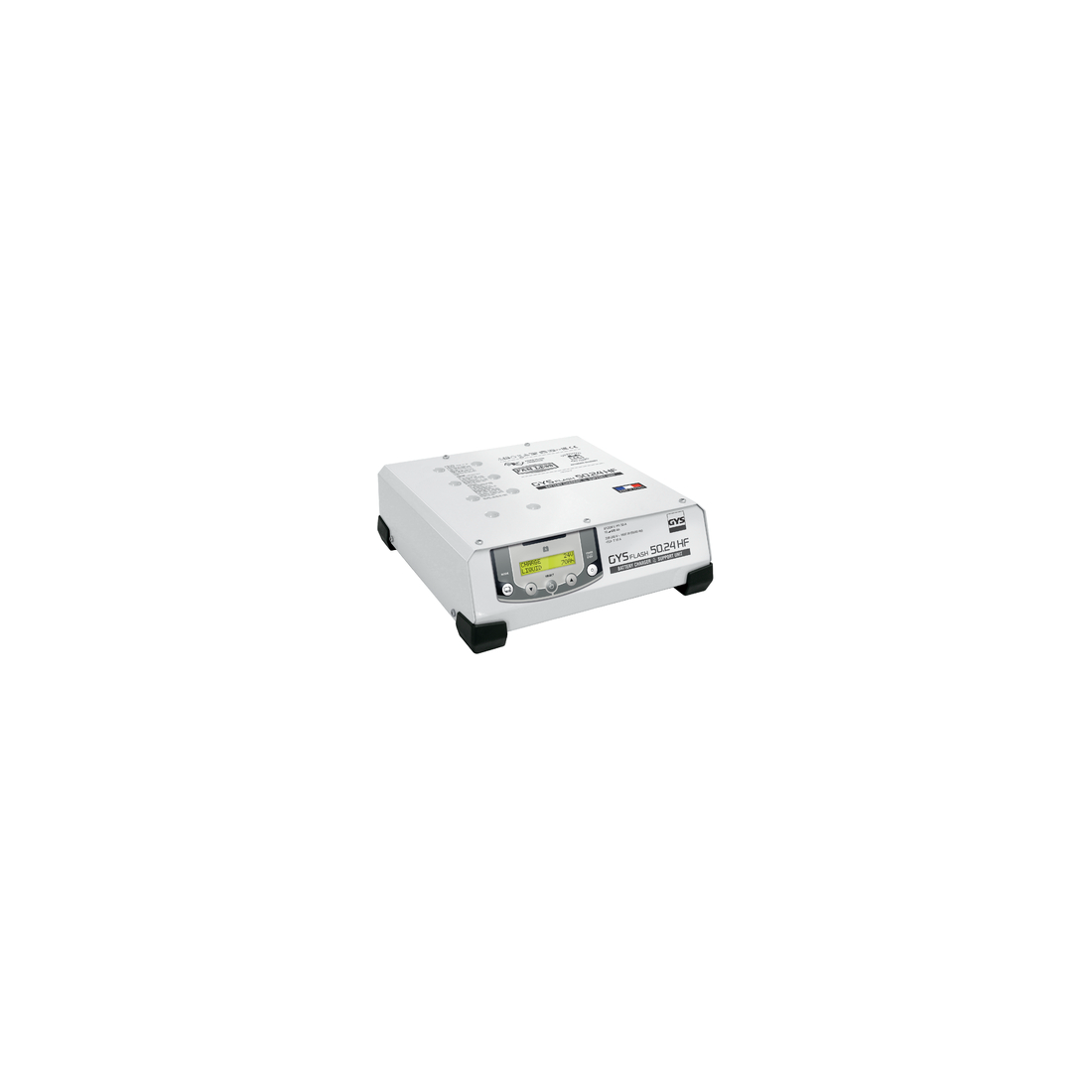

Battery Charger GYSFLASH 50-24 HF (2.5 m cables) (029095, GYS)

Automatic 7-step charging curve with optimized charging and maintenance cycles
Compatible with all battery types (including Start-Stop and lithium)
Diagnostic voltage stabilization mode for use during ECU and onboard electronics programming
Showroom mode – provides constant voltage during vehicle demonstration
Battery change mode – maintains vehicle memory settings during battery replacement
Robust and compact design for workshop environments
Over-voltage, reverse polarity, and short-circuit protection
Power Supply 230 V / 1 phase / 50–60 Hz
Power Output 1500 W
Maximum Charging Current 50 A
Supported Battery Voltages 6 V / 12 V / 24 V
Battery Capacity Range 10 – 600 Ah
Diagnostic Mode Voltage 13.5 V
Diagnostic+ Mode Voltages 6 V / 12 V / 24 V
Showroom Mode Voltages 7.4 V / 14.8 V / 29.6 V
Battery Change Mode Voltages 6.5 V / 12.9 V / 25.8 V
Internal Fuse 80 A
Protection Class IP21
Dimensions (L × W × H) 320 × 292 × 105 mm
Weight 6 kg
Cable Length 2.5 meters
